ZKLFA0640-2RS

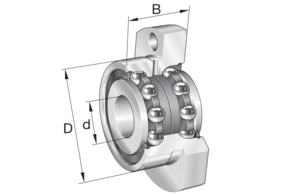

Axial angular contact ball bearing

Angular contact ball bearing units ZKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange

Description

ZKLFA0640-2RS

ZKLFA0640-2RS

ZKLFA0640-2RS

ZKLFA0640-2RS

ZKLFA0640-2RS

Metric

Imperial

Main Dimensions & Performance Data
d6 mmBore diameter
0.002 mmBore diameter upper tolerance
-0.003 mmBore diameter lower tolerance
D24 mmOutside diameter
0 mmOutside diameter upper tolerance
-0.01 mmOutside diameter lower tolerance
B15 mmWidth
0 mmWidth upper tolerance
-0.25 mmWidth lower tolerance
Ca6,900 NBasic dynamic load rating, axial
C0a8,500 NBasic static load rating, axial
Cua385 NFatigue load limit, axial
nG Grease16,400 1/minLimiting speed for grease lubrication
≈m59 gWeight
Mounting dimensions
da min9 mmMinimum diameter shaft shoulder
da max18 mmMaximum diameter of shaft shoulder
t10.1 mmposition tolerance
M4 Screw size
na4 Number of screws
Dimensions
d114 mmRib diameter inner ring
rmin0.3 mmMinimum chamfer dimension
r1 min0.6 mmMinimum chamfer dimension
B16 mmThickness of flange
d24.5 mmFixing boring diameter
J32 mmPitch circle diameter (holes)
A27 mmFlange width
Temperature range
Tmin-30 °COperating temperature min.
Tmax120 °COperating temperature max.
Additional information
MRL0.04 NmBearing friction torque
caL200 N/µmRigidity axial
ckL8 Nm/mradTilting stiffness
Mm0.0044 kg*cm2Mass moment of inertia
2 µmAxial runout
ZM06 recommended INA precision locknut for radial locking (not included)
MA2 NmTightening torque nut
2,404 NLocknut force axial
Your current product variant
Sealing2RSContact lip seals on both sides

Characteristics

clusteriteminfo.radialloadtranslation
clusteriteminfo.axialloadinonedirectiontranslation
clusteriteminfo.axialloadintwodirectionstranslation
clusteriteminfo.lifetimelubricationfreedomfrommaintenancetranslation
clusteriteminfo.greaselubricationtranslation
clusteriteminfo.sealedonbothsidestranslation
