ZKLF2068-2RS-2AP-XL
Axial angular contact ball bearing
Axial angular contact ball bearings ZKLF..-2RS-2AP-XL, matched pair, double direction, lip seals on both sides
Replaces
ZKLF 2068.2RS 2AP, ZKLF2068-2RS-2AP
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 20 mm | Bore diameter |
| 0 mm | Bore diameter upper tolerance | |
| -0.005 mm | Bore diameter lower tolerance | |
| D | 68 mm | Outside diameter |
| 0 mm | Outside diameter upper tolerance | |
| -0.01 mm | Outside diameter lower tolerance | |
| B | 56 mm | Width |
| 0 mm | Width upper tolerance | |
| -0.25 mm | Width lower tolerance | |
| Ca | 46,000 N | Basic dynamic load rating, axial |
| C0a | 94,000 N | Basic static load rating, axial |
| Cua | 5,700 N | Fatigue load limit, axial |
| nG Grease | 6,600 1/min | Limiting speed for grease lubrication |
| nϑ | 3,000 1/min | Thermally safe operating speed |
| MR | 0.45 Nm | Bearing frictional torque |
| ≈m | 1.14 kg | Weight |
Mounting dimensions
| Da max | 43 mm | Maximum diameter of housing |
| da min | 25 mm | Minimum diameter shaft |
| t1 | 0.1 mm | Position tolerance of bore in the housing |
| M6X70 | Size of fixing screws | |
| na | 8 | Number of holes in adjacent construction |
| ta | 45 ° | Pitch separation angle of holes in adjacent construction |
| M6 | Connection thread for lubrication |

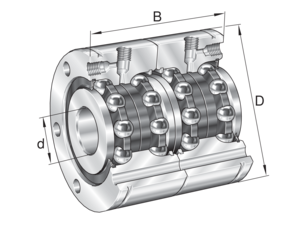

Dimensions
| d1 | 34.5 mm | Rib diameter inner ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| J | 53 mm | Pitch circle diameter fixing holes |
| d2 | 6.8 mm | Fixing holes diameter |
| b | 3 mm | Width of extraction slot |
| I | 47 mm | Distance of extraction slot |
| n | 8 | Pitch quantity of fixing holes |
| t | 45 ° | Pitch separation angle of fixing holes |
| a | 60 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 1,150 N/µm | Rigidity axial |
| ckL | 320 Nm/mrad | Tilting rigidity |
| Mm | 0.564 kg*cm2 | Mass moment of inertia |
| 2 µm | Axial runout | |
| ZMA20/38 | Recommended INA precision locknut for radial locking | |
| AM20 | Recommended INA precision locknut for axial locking | |
| MA | 18 Nm | Tightening torque for the recommended INA precision locknut |
| 8,258 N | Required locknut force axial |
Your current product variant
| Number of bearings | 2AP | Axial angular contact ball bearings, matched pair |
| Sealing | 2RS | Contact lip seals on both sides |
| Tolerance class | Standard |
