YET 204-012

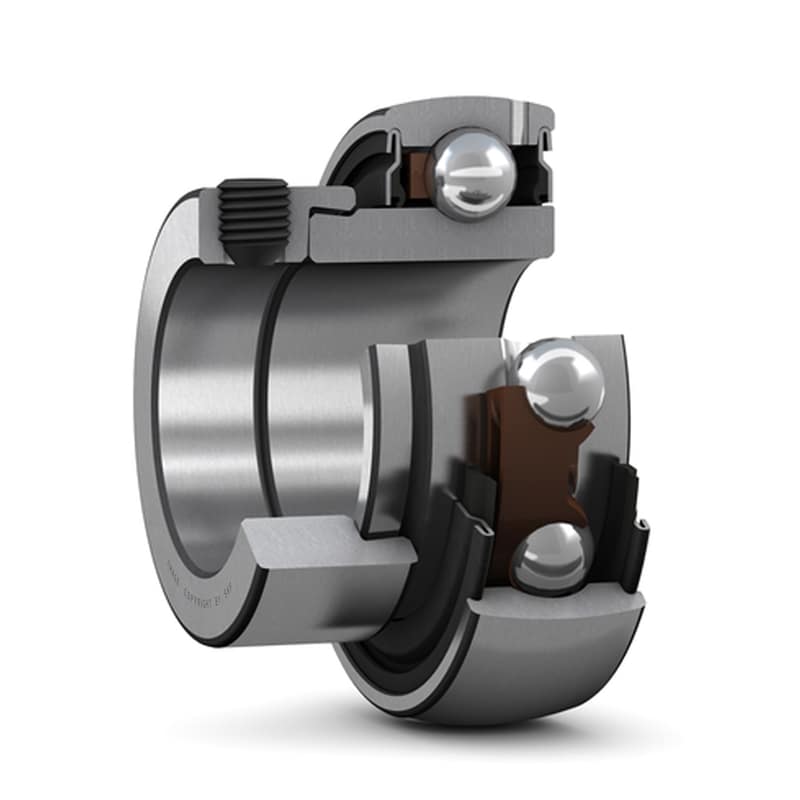

Insert bearing with an eccentric locking collar and narrow inner ringInsert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
- Designed for rotation in one direction
- Quick and easy to mount onto the shaft
- Long service life
- Reduce noise and vibration levels
Description
Dimensions
| d | 19.05 mm | Bore diameter |
|---|---|---|
| D | 47 mm | Outside diameter |
| B1 | 30.5 mm | Overall bearing width |
| B | 21 mm | Width of inner ring |
| C | 14 mm | Width of outer ring |
| d1 | ≈ 28.2 mm | Outside diameter of inner ring |
| d2 | 32.4 mm | Outside diameter of locking collar |
| B4 | 4.75 mm | Distance from side face to thread centre |
| r1,2 | min. 0.6 mm | Chamfer dimension of inner ring |
| s1 | 23.5 mm | Distance from locking device side face to raceway centre |
Calculation data
| Basic dynamic load rating | C | 12.7 kN |
|---|---|---|
| Basic static load rating | C0 | 6.55 kN |
| Fatigue load limit | Pu | 0.28 kN |
| Limiting speed | 8 500 r/min | |
Limiting speed with shaft tolerance h6 | ||
| Calculation factor | f0 | 13 |
Mass
| Mass | 0.17 kg |
Mounting information
| Set screw | G2 | 1/4-28 UNF |
|---|---|---|
| Hexagonal key size for set screw | N | 3.175 mm |
| Recommended tightening torque for set screw | 4 N·m |
Associated products
| Rubber seating ring | RIS 204 |
Tolerances and clearances
Design considerations
