VU200405-RR-VSP-ZT

Slewing Ring, Four Point contact bearing, without gear teeth

Four point contact bearings without gear teeth, sealed on both sides

Display units

Metric

Imperial

Main Dimensions & Performance Data

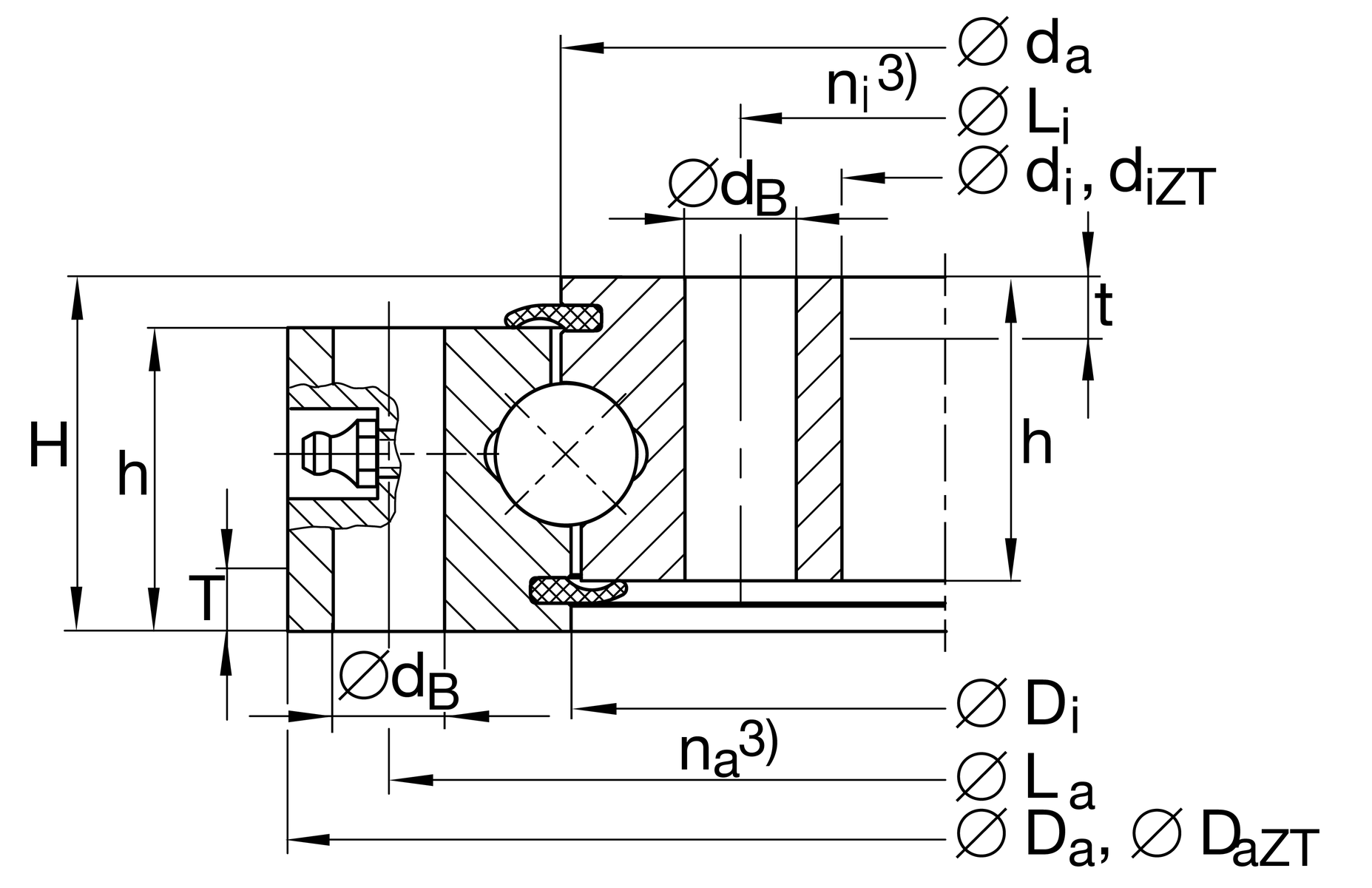

d_i	336 mm	Inner diameter inner ring
	0.5 mm	Inner diameter inner ring lower tolerance
	0.5 mm	Inner diameter inner ring upper tolerance
d_iZT	338 mm	Diameter centring inner ring
	IT8	Diameter centring inner ring tolerance
H	46 mm	Height
D_a	474 mm	Outside Diameter
	0.8 mm	Outside diameter lower tolerance
	0.8 mm	Outside diameter upper tolerance
D_{a ZT}	472 mm	Centring diameter outer ring
	-IT8	Diameter centring outer ring tolerance
T	7 mm	Length centering outer ring
t	7 mm	Length centering inner ring
h_a	41 mm	Width outer ring
h_i	41 mm	Width inner ring
	0.05	Normal radial clearance min.
	0.2	Normal radial clearance max.
	0.08	Normal axial clearance min.
	0.33	Normal axial clearance max.
≈m	25 kg	Weight

Dimensions

D_i	404 mm	Inner diameter outer ring
d_a	406 mm	Outside diameter inner ring
d_B	14 mm	Fixing bore
L_a	450 mm	Pitchcircle diameter fixing holes outer ring
n_a	30	Number of fixing holes in outer ring
L_i	360 mm	Pitchcircle diameter fixing holes inner ring
n_i	30	Number of fixing holes in inner ring
F_{r zul}	89,000 N	Max. radial load fixing screws (friction locking)

Temperature range

T_min	-25 °C	Operating temperature min.
T_max	80 °C	Operating temperature max.

Calculation factors

C_a	204,000 N	Basic dynamic load rating, axial
C_0a	860,000 N	Basic static load rating, axial
C_r	185,000 N	Basic dynamic load rating, radial (for radial load only)
C_0r	390,000 N	Basic static load rating, radial (for radial load only)

Downloads:

Your current product variant

Centering	ZT	Centering on inner and outer ring
Coating	RR	Protected against corrosion by Corrotect special coating
Preload	VSP	Bearing with preload
