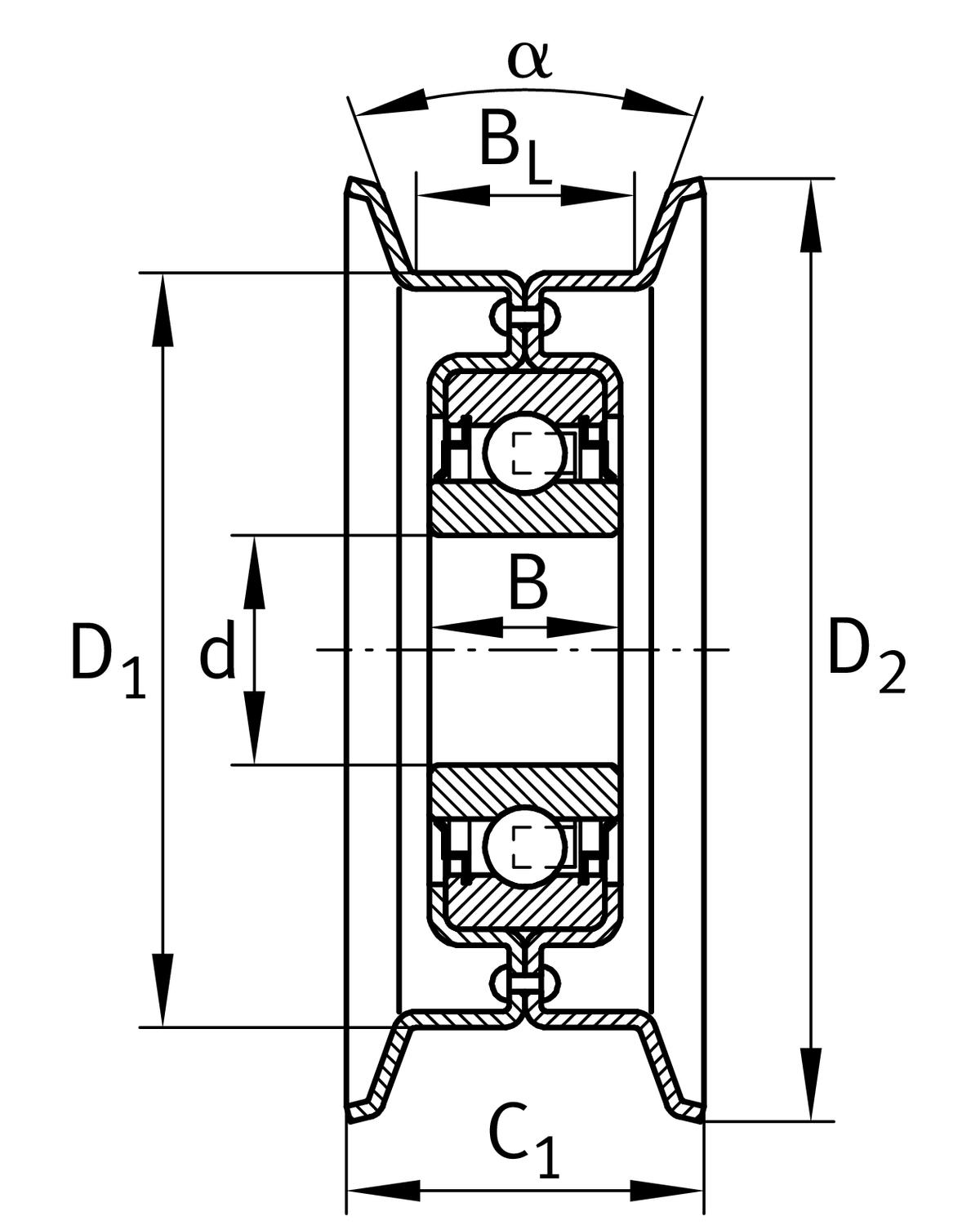

Main Dimensions & Performance Data
| d | 13 mm | Bore diameter |
| d | 0.08 mm | Upper tolerance |
| d | -0.05 mm | Lower tolerance |
| D1 | 101 mm | Raceway diameter idler pulley |
| C1 | 36 mm | Width idler pulley |
| Cr | 9,800 N | Basic dynamic load rating, radial |
| C0r | 4,750 N | Basic static load rating, radial |
| Cur | 248 N | Fatigue load limit, radial |
| ≈m | 0.46 kg | Weight |
Mounting dimensions
| a | 10 ° | Angle idler pulley raceway |
Dimensions
| D2 | 117 mm | Outside diameter idler pulley |
| B | 18.3 mm | Width |
| BL | 25.4 mm | Width idler pulley raceway |
Your current product variant
| Manufacturing instruction | Without | none |
