NJ210-E-XL-TVP2
Cylindrical roller bearing
Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
Replaces
NJ210E.TVP2, NJ210-E-TVP2
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 50 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| B | 20 mm | Width |
| Cr | 75,000 N | Basic dynamic load rating, radial |
| C0r | 69,000 N | Basic static load rating, radial |
| Cur | 11,300 N | Fatigue load limit, radial |
| nG | 11,100 1/min | Limiting speed |
| nϑr | 6,600 1/min | Reference speed |
| ≈m | 0.484 kg | Weight |

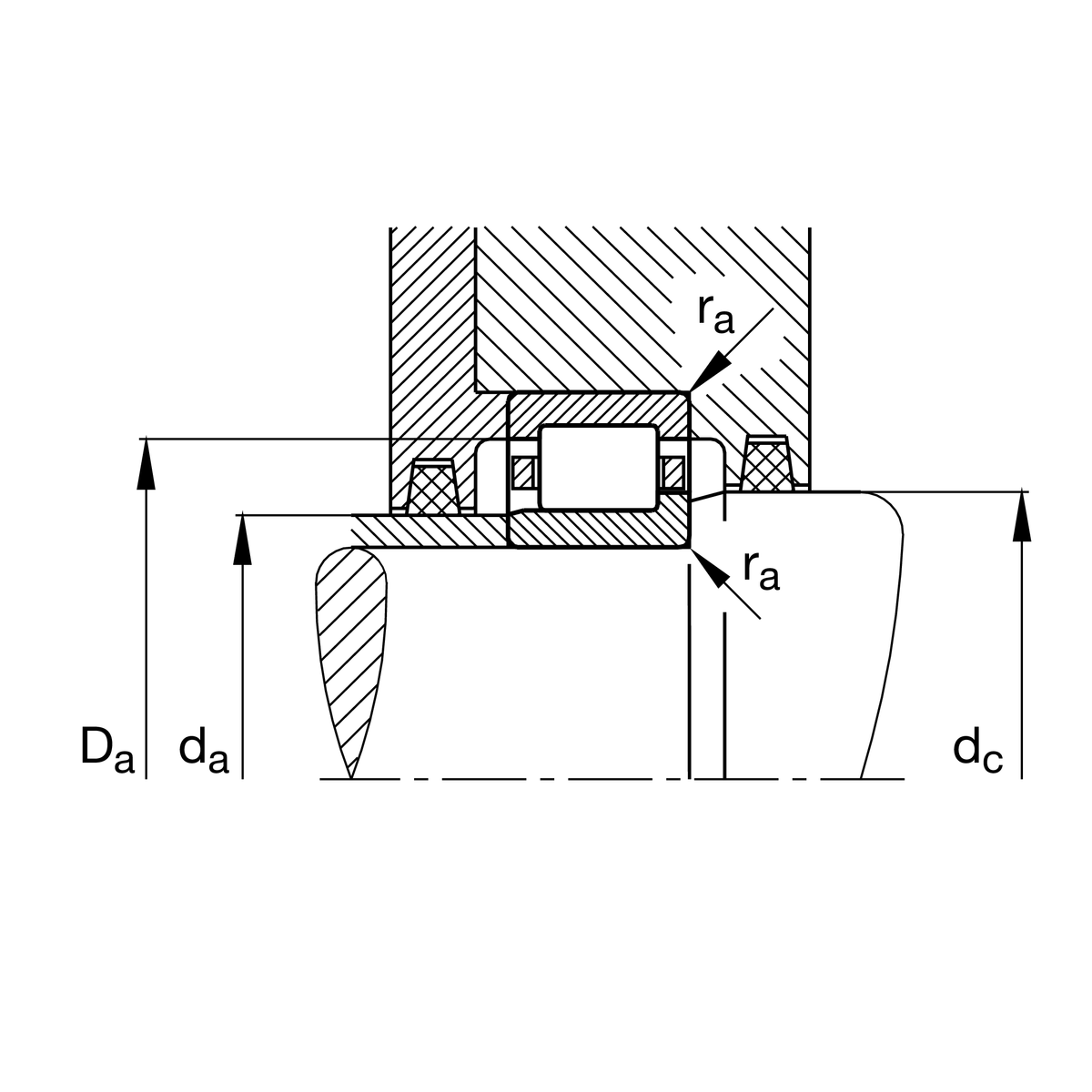

Mounting dimensions
| da min | 57 mm | Minimum diameter shaft shoulder |
| da max | 58 mm | Maximum diameter of shaft shoulder |
| Da max | 83 mm | Maximum diameter of housing shoulder |
| dc min | 67 mm | Minimum shaft shoulder |
| ra max | 1 mm | Maximum recess radius |

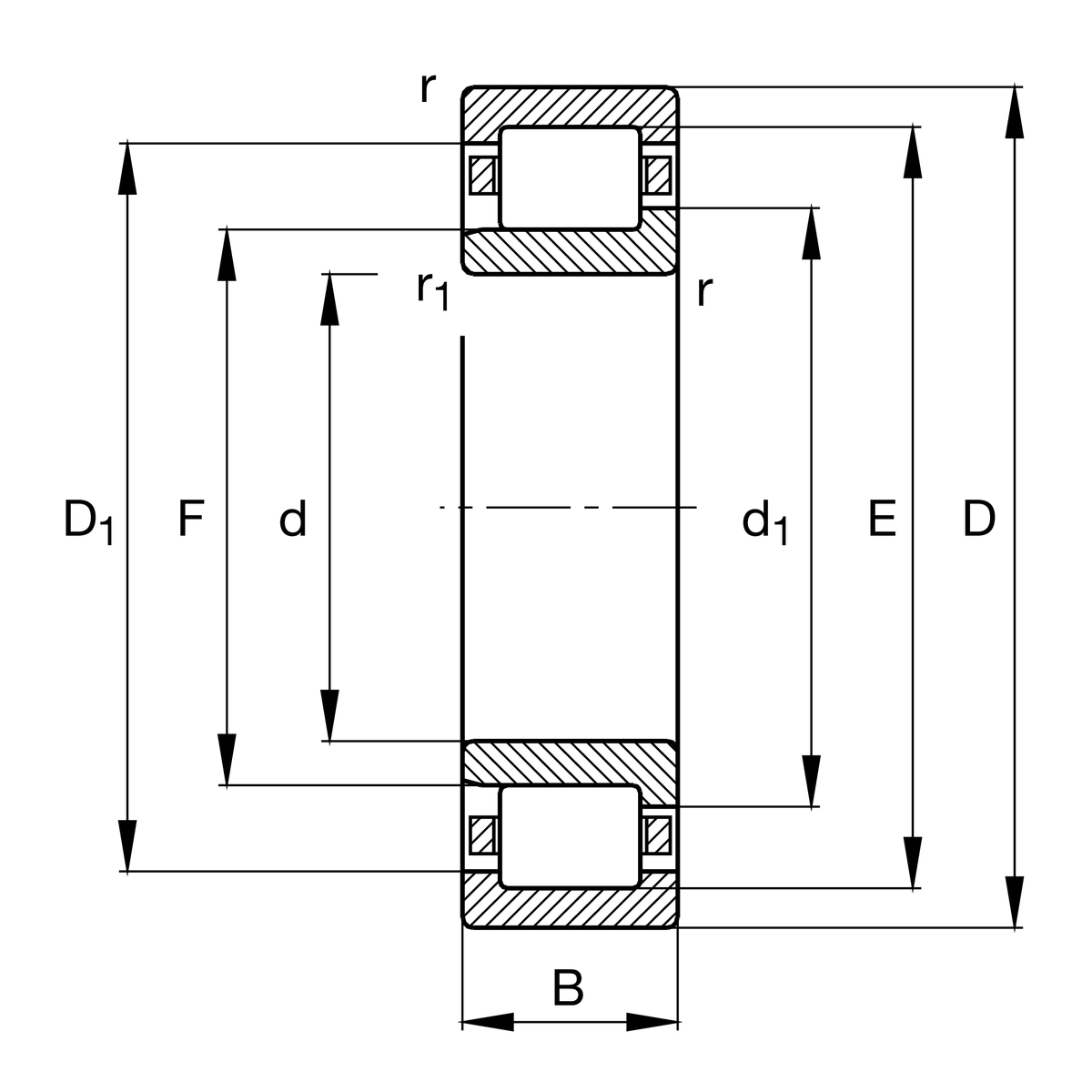

Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| r1 min | 1.1 mm | Minimum chamfer dimension |

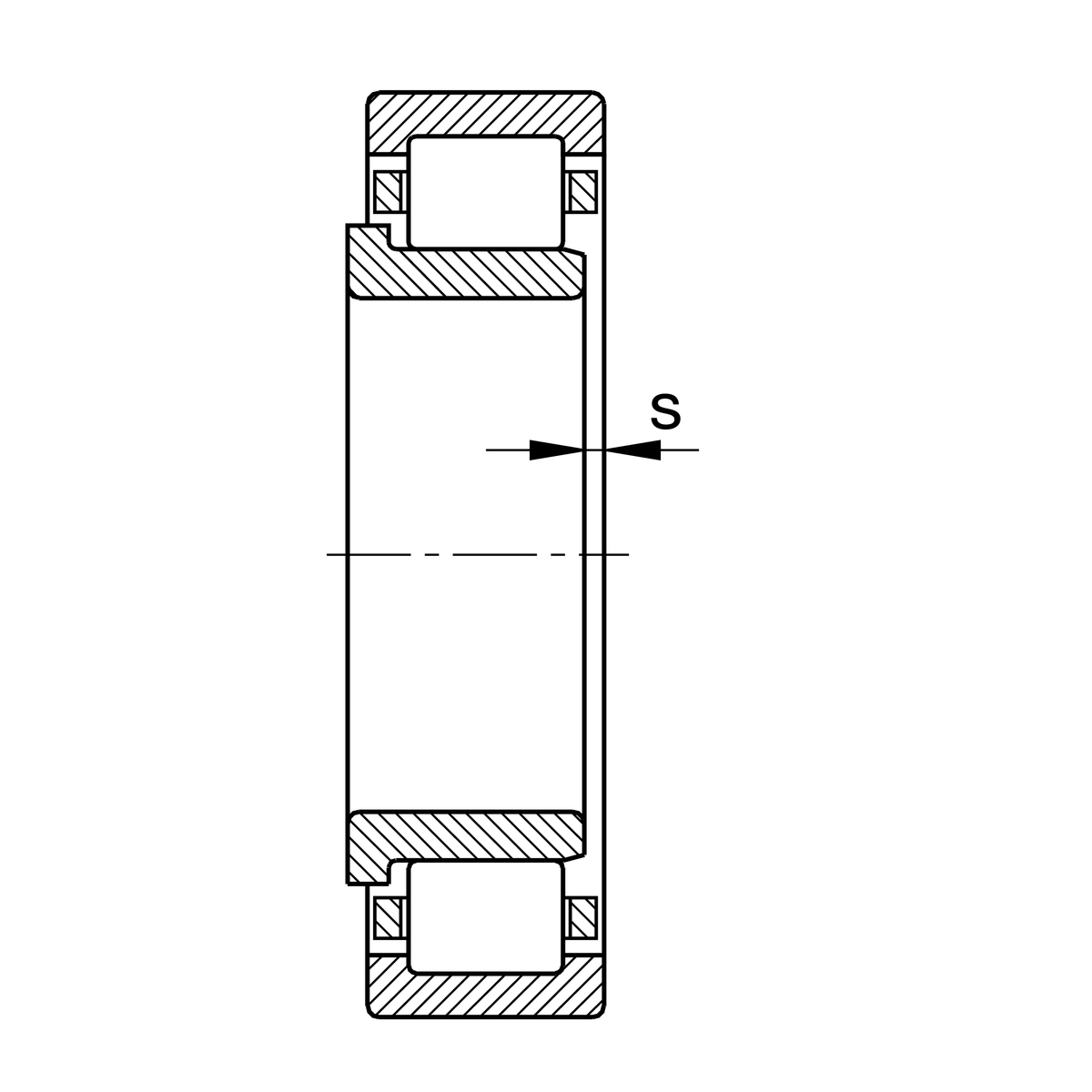

| s | 1.3 mm | Axial displacement |
| E | 81.5 mm | Raceway diameter outer ring |
| F | 59.5 mm | Raceway diameter inner ring |

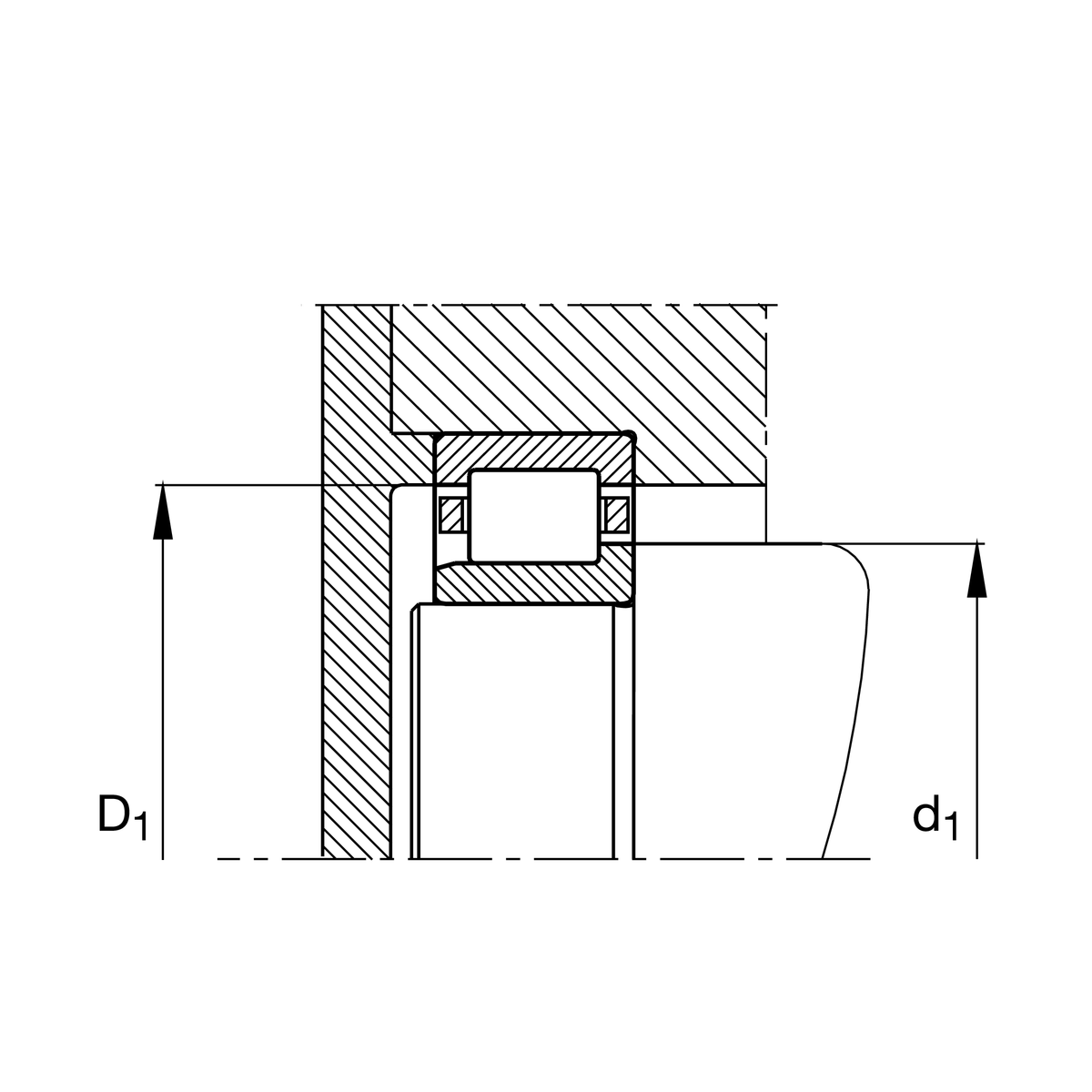

| D1 min | 78.3 mm | Minimum rib diameter outer ring |
| d1 | 64 mm | Maximum rib diameter inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| HJ210-E | L-washer |
Your current product variant
| Design | E | Increased Capacity Design |
| Cage | TVP2 | Solid Window Cage made from PA66 |
| Radial internal clearance | CN | Group N (CN) |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |
