NATR10-PP

Yoke type track roller

Yoke type track rollers NATR..-PP, with axial guidance, axial plain washers on both sides

Display units

Metric

Imperial

Main Dimensions & Performance Data

d	10 mm	Bore diameter
D	30 mm	Outside diameter
B	15 mm	Width, inner ring
C_{r w}	6,800 N	Basic dynamic load rating, radial
C_{0r w}	8,700 N	Basic static load rating, radial
C_{ur w}	1,240 N	Fatigue load limit, radial
n_{D G}	5,500 1/min	Speed on permanent grease lubrication
F_{0r per}	8,700 N	Permissible static load, radial
F_{r per}	8,700 N	Permissible dynamic load outer ring, radial
≈m	59.758 g	Weight

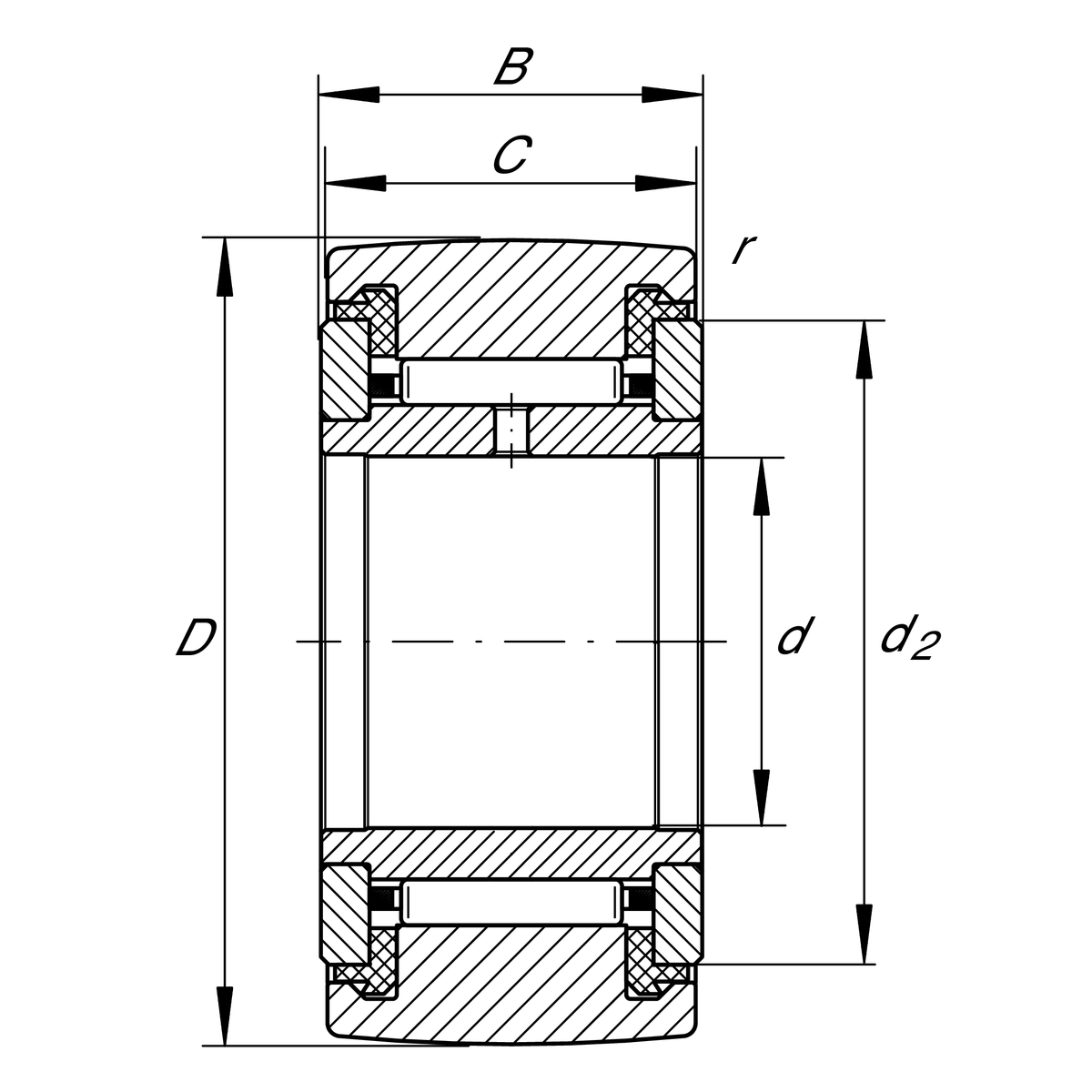

Dimensions

C	14 mm	Width, outer ring
d₂	23 mm	Outside diameter of thrust washer
r_min	0.6 mm	Minimum chamfer dimension

Downloads:

Your current product variant

Sealing	PP	Three-stage sealing by plastic axial plain washer on both sides
Outer Ring profile		Optimized INA-profile
Relubrication feature		Via inner ring
