Description
Metric
Imperial

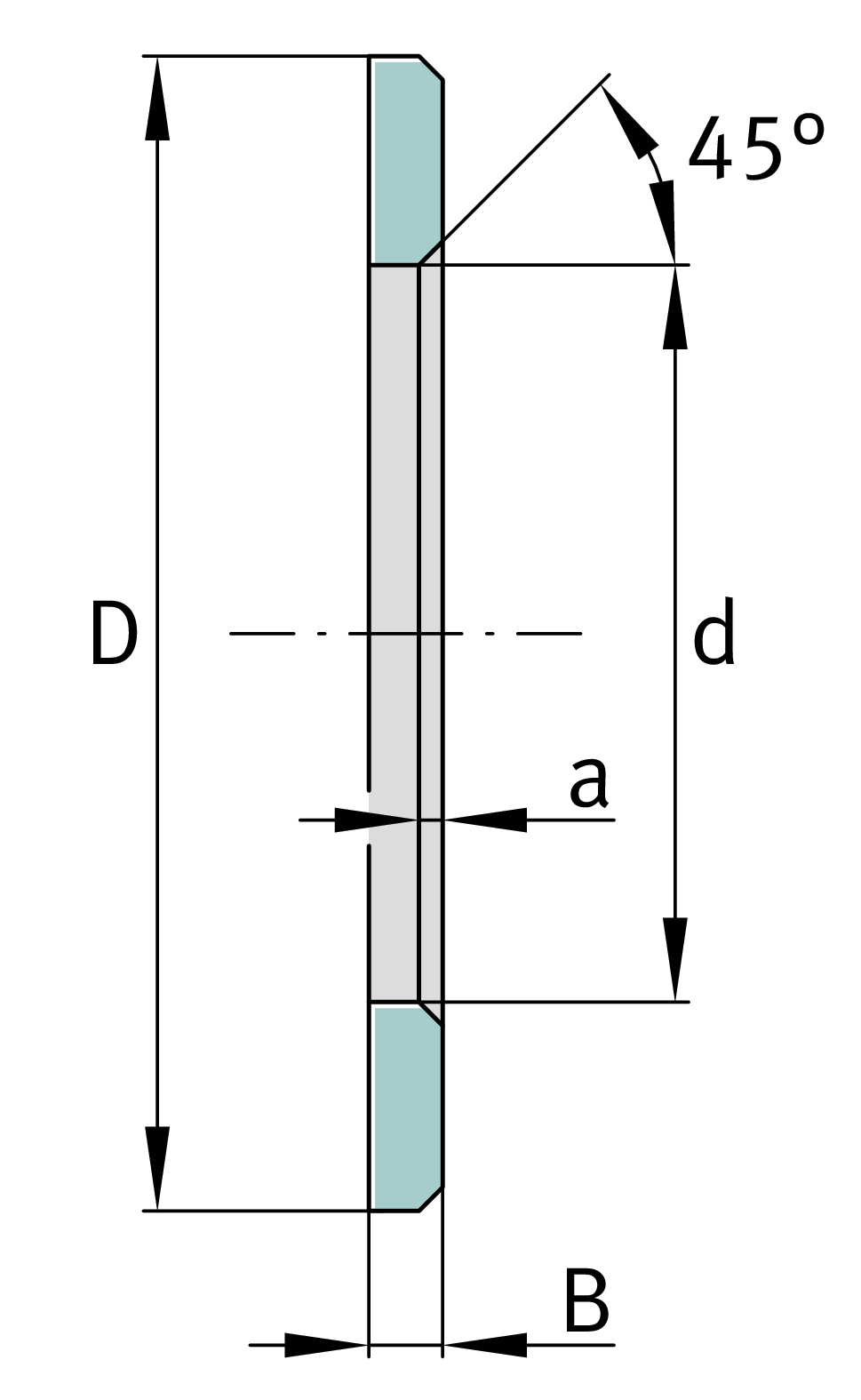

Main Dimensions & Performance Data
| d | 110 mm | Bore diameter track washer |
| D | 145 mm | Outside diameter track washer |
| B | 7 mm | Width |
| 45 ° | Chamfer Angle | |
| amin | 1.5 mm | Chamfer width |
| ≈m | 0.362 kg | Weight |
Downloads:
Metric
Imperial
| d | 110 mm | Bore diameter track washer |
| D | 145 mm | Outside diameter track washer |
| B | 7 mm | Width |
| 45 ° | Chamfer Angle | |
| amin | 1.5 mm | Chamfer width |
| ≈m | 0.362 kg | Weight |
