Main Dimensions & Performance Data
| D | 32 mm | Outside diameter |
| d | 10 mm | Bore diameter |
| C | 9 mm | Height |
| Cr w | 5,100 N | Basic dynamic load rating, radial |
| C0r w | 2,380 N | Basic static load rating, radial |
| Cur w | 120 N | Fatigue load limit, radial |
| nD G | 13,000 1/min | Speed on permanent grease lubrication |
| ≈m | 36 g | Weight |

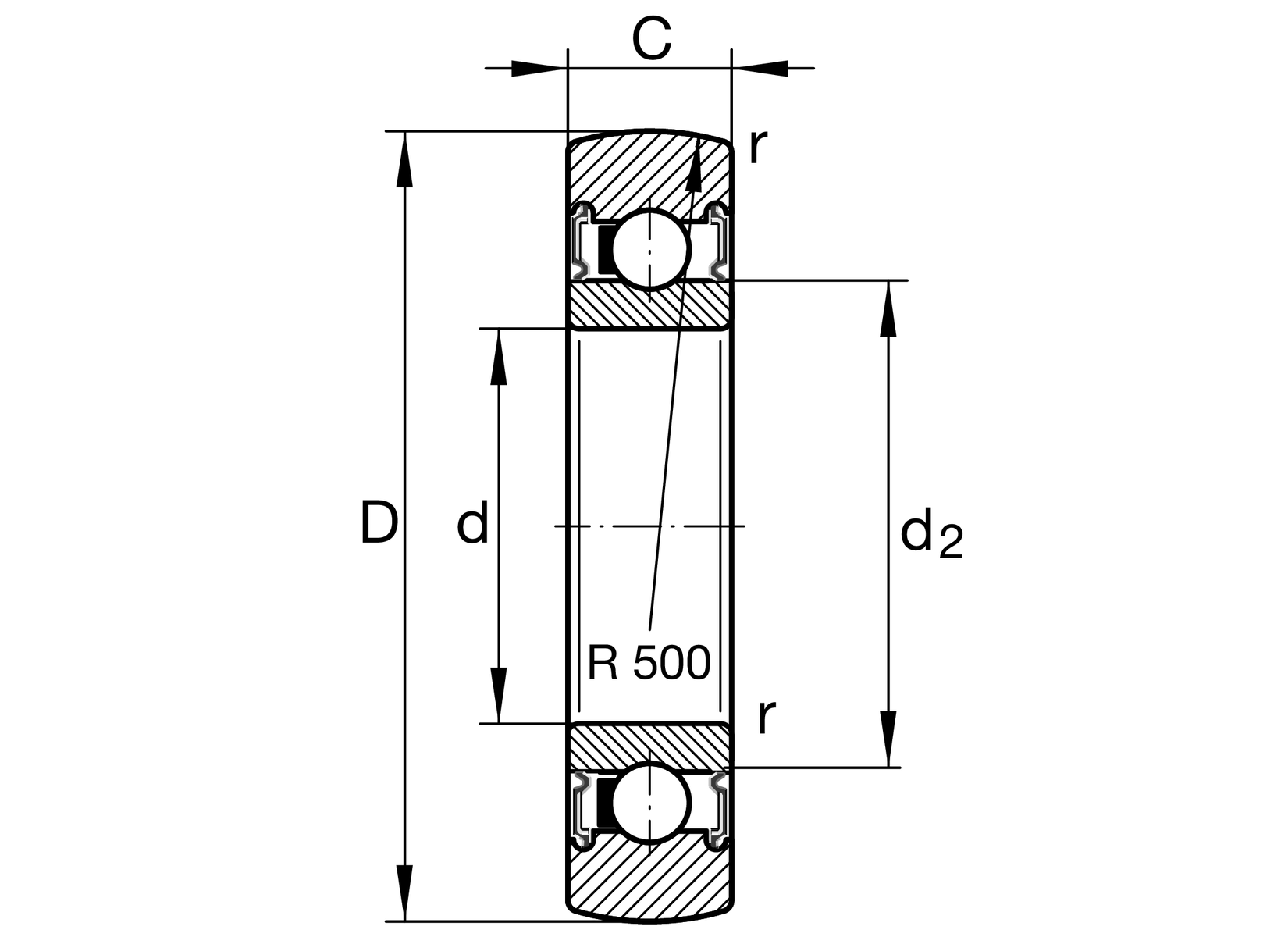

Dimensions
| d2 | 16.6 mm | Diameter of thrust washer |
| rmin | 0.6 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides, with radial sealing action |
| Outer Ring profile | R500 | |
| Relubrication feature | Without |
