Main Dimensions & Performance Data
d | 25 mm | Bore diameter |
DSP | 52 mm | Outside diameter |
B | 21.5 mm | Width |
B1 | 31 mm | Locking collar total width |
Cr | 14,020 N | Basic dynamic load rating, radial |
C0r | 7,880 N | Basic static load rating, radial |
Cur | 335 N | Fatigue load limit, radial |
≈m | 0.2 kg | Weight |

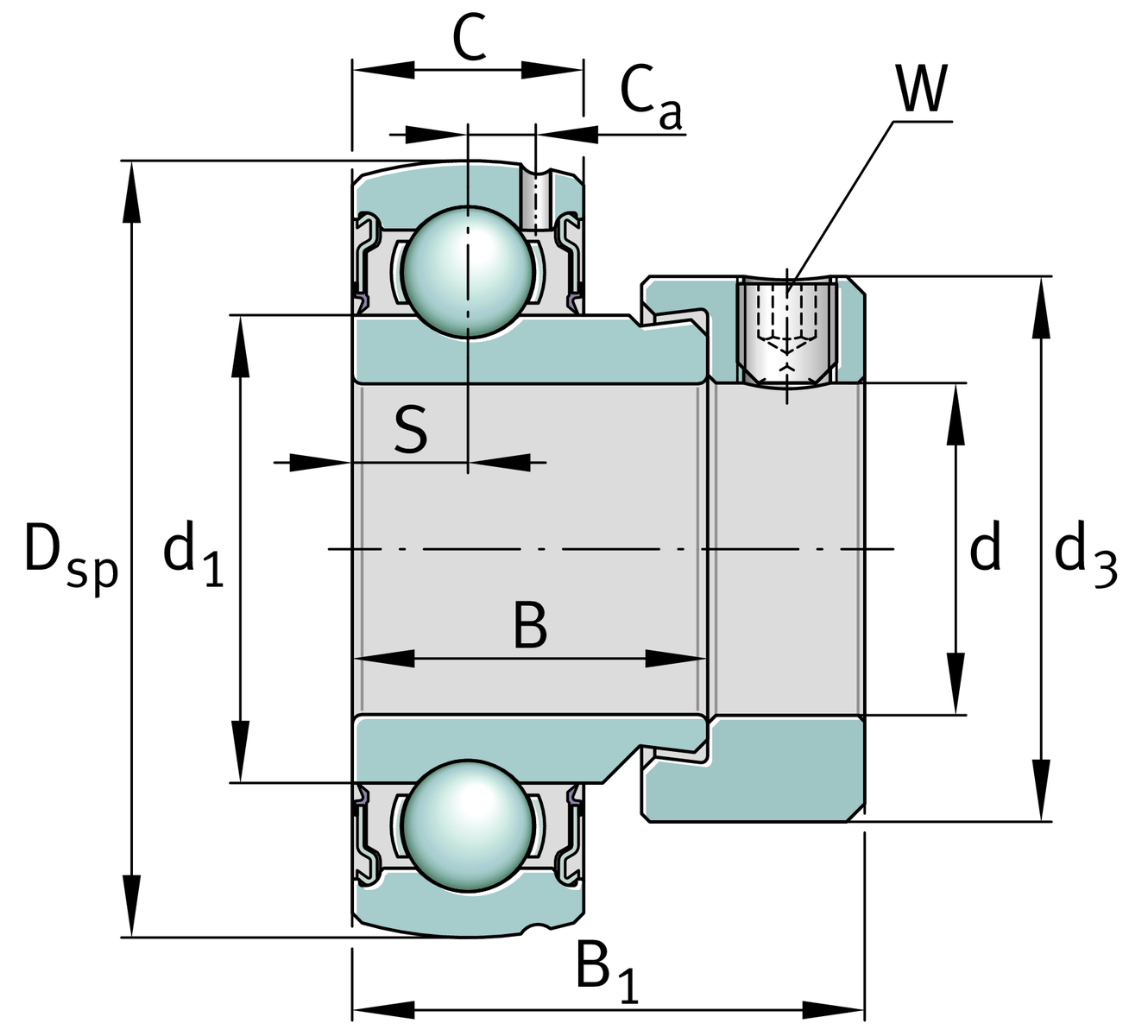

Dimensions
C | 15 mm | Width, outer ring |
S | 7.5 mm | Distance raceway |
d1 | 34 mm | Rib diameter inner ring |
Ca | 4.15 mm | Distance to lubrication hole |
d3 | 38.1 mm | Outside diameter locking collar/locknut |
W | 3 mm | Width of flats |
Temperature range
Tmin | -35 °C | Operating temperature min. |
Tmax | 100 °C | Operating temperature max. |
Calculation factors
f0 | 13.8 | Calculation factor |
Downloads:
Your current product variant
Sealing | KRR | Lip seals on both sides |
Shape of outer surface | B | B |
Manufacturing instruction | FA107 | Bearing with lubrication holes on the locating side |
Special material | VA | Corrosion-resistant VA design |
