Description
Metric
Imperial

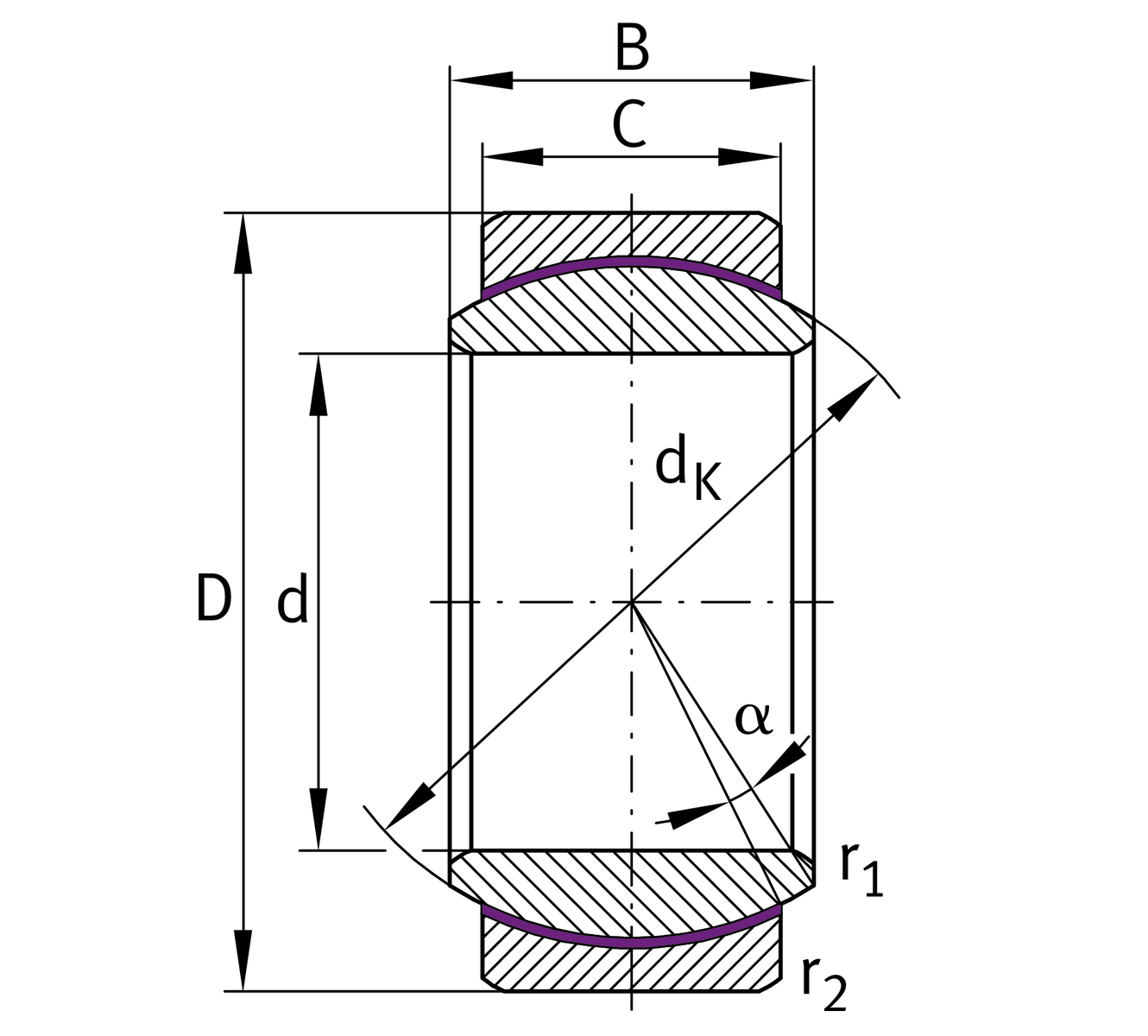

Main Dimensions & Performance Data
| D | 19 mm | Outside diameter bearing |
| d | 10 mm | Bore diameter bearing |
| B | 9 mm | Width Inner ring |
| C | 6 mm | Width Outer ring |
| Cr | 8,640 N | Basic dynamic load rating, radial |
| C0r | 21,600 N | Basic static load rating, radial |
| ≈m | 10.76 g | Weight |
Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |
| r2smin | 0.3 mm | Edge Spacing |
| da max | 13.2 mm | Connection measure Inner ring |
| Da min | 15.5 mm | Housing Connection Diameter |
Dimensions
| dK | 16 mm | Ball diameter |
| α | 12 ° | Tilt angle |
| Gr | 0 – 0,032 mm | Radial Clearance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.008 mm | Bore diameter bearing, lower tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.009 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0.24 mm | Width outer ring, lower tolerance |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Downloads:
Your current product variant
| Sealing | Without | |
| Bore lining | Without | |
| Coating | Without | |
| Fabric | PTFE-composite | PTFE-composite |
| Material | Steel | Steel |
Characteristics
