GE10-PW

Spherical plain bearing

Radial spherical plain bearing, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-1, dimension series K, open design

Display units

Metric

Imperial

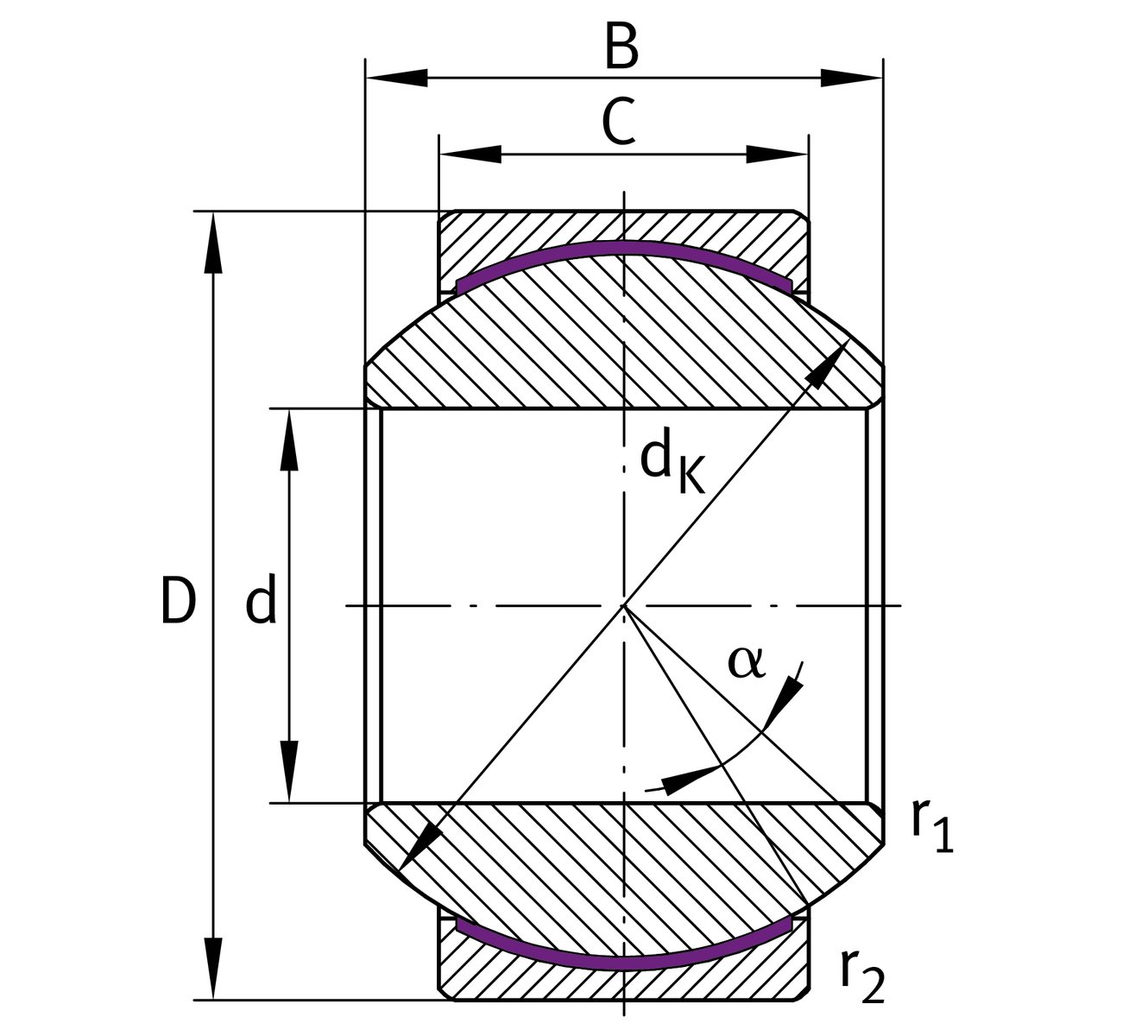

Main Dimensions & Performance Data

D	22 mm	Outside diameter bearing
d	10 mm	Bore diameter bearing
B	14 mm	Width Inner ring
C	10.5 mm	Width Outer ring
C_r	18,100 N	Basic dynamic load rating, radial
C_0r	45,200 N	Basic static load rating, radial
≈m	27.39 g	Weight

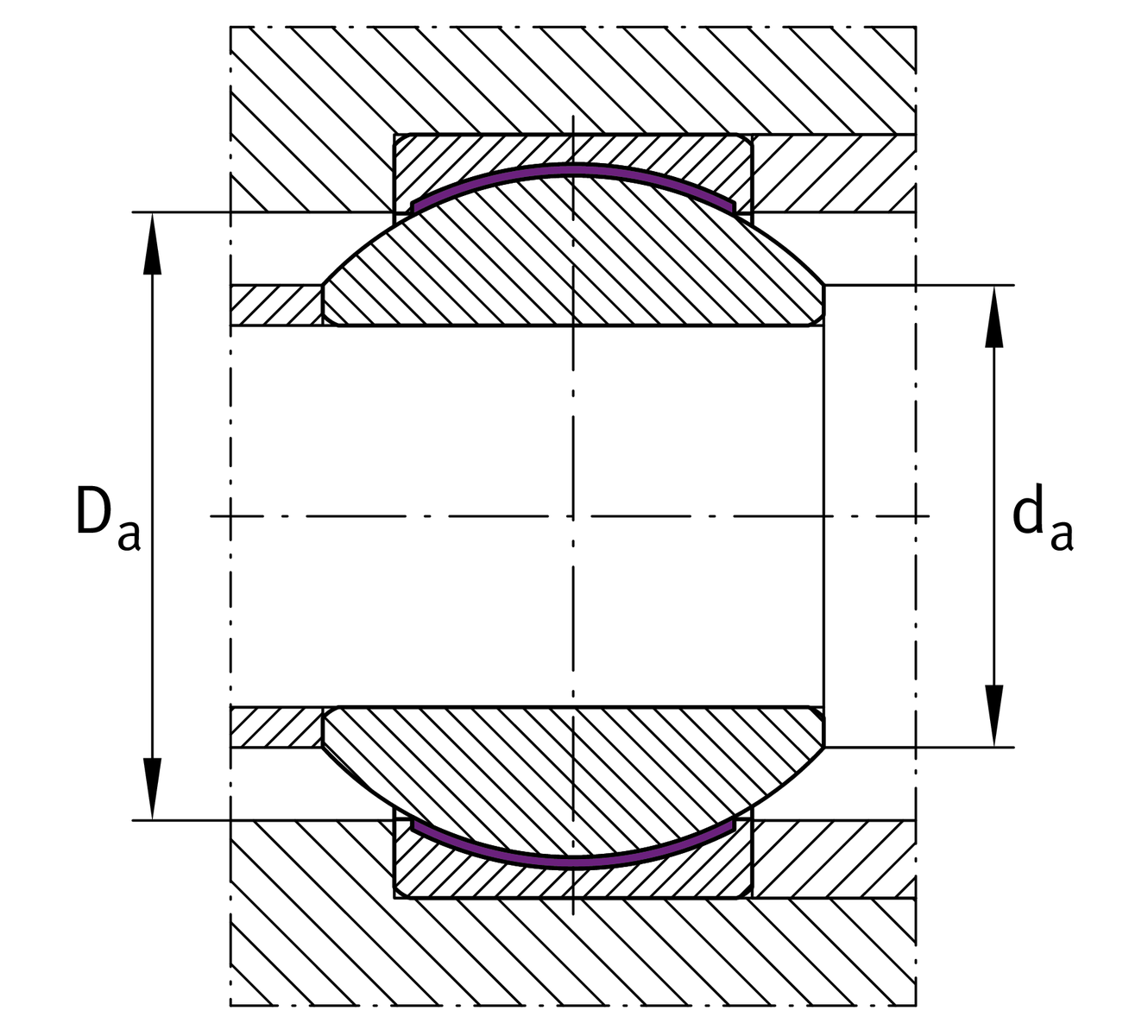

Mounting dimensions

r_1smin	0.3 mm	Edge Spacing
r_2smin	0.3 mm	Edge Spacing
d_{a max}	12.9 mm	Connection measure Inner ring
D_{a min}	17 mm	Housing Connection Diameter

Dimensions

d_K	19.05 mm	Ball diameter
α	13 °	Tilt angle
G_r	0,006 – 0,035 mm	Radial Clearance
d_OT	0.015 mm	Bore diameter bearing, upper tolerance
d_UT	0 mm	Bore diameter bearing, lower tolerance
d_T	H7 mm	Bore diameter bearing, tolerance
D_OT	0 mm	Outside diameter, upper tolerance
D_UT	-0.009 mm	Outside diameter, lower tolerance
B_OT	0 mm	Width inner ring, upper tolerance
B_UT	-0.12 mm	Width inner ring, lower tolerance
C_OT	0 mm	Width outer ring, upper tolerance
C_UT	-0.24 mm	Width outer ring, lower tolerance

Temperature range

T_min	-50 °C	Operating temperature min.
T_max	200 °C	Operating temperature max.
