Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 16 mm | Bore diameter bearing |
| D | 32 mm | Outside diameter bearing |
| B | 21 mm | Width inner ring |
| Cr | 21,400 N | Basic dynamic load rating, radial |
| C0r | 45,300 N | Basic static load rating, radial |
| ≈m | 208 g | Weight |
Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |

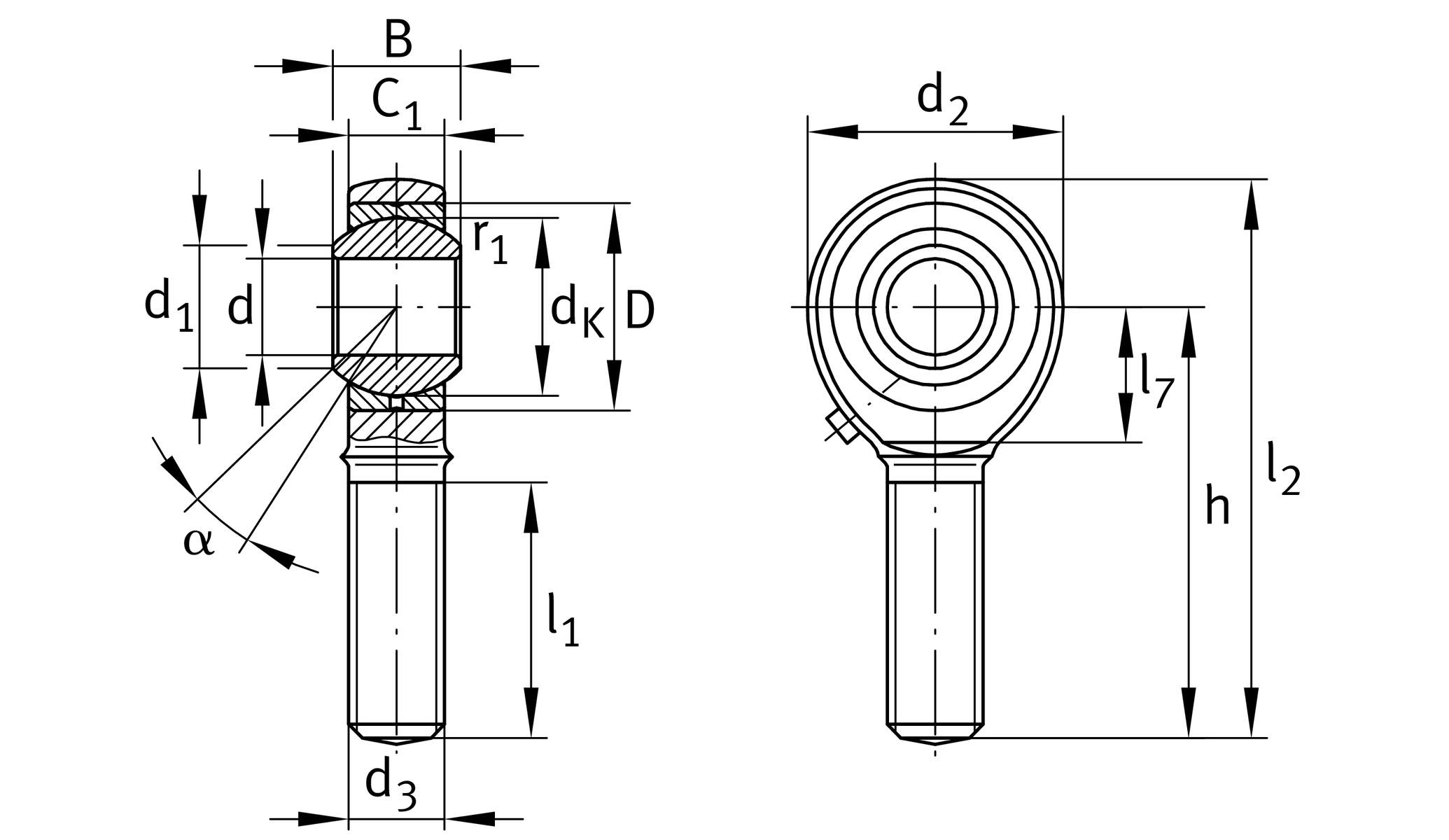

Dimensions
| dK | 28.575 mm | Ball diameter |
| d1 | 19.3 mm | Outer flange diameter inner ring |
| d2 | 42 mm | Outer eye diameter |
| d3 | M16 | Thread size |
| h | 66 mm | Shank Length External thread rod |
| C1 | 15 mm | Width of the rod end |
| α | 15 ° | Tilt angle |
| l1 | 37 mm | Shank Length External thread head |
| l2 | 87 mm | Total length external thread head |
| l7 | 23 mm | Distance drilling with/shaft start |
| Gr | 0 – 0,035 mm | Radial Clearance |
| dOT | 0.018 mm | Bore diameter bearing, upper tolerance |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| dT | H7 mm | Bore diameter bearing, tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 250 °C | Operating temperature max. |
