Description
Metric
Imperial
Main Dimensions & Performance Data
| Do | 10 mm | Outer diameter |
| B | 12 mm | Width |
| Cr | 6,720 N | Basic dynamic load rating, radial |
| C0r | 13,400 N | Basic static load rating, radial |
| ≈m | 1.858 g | Weight |

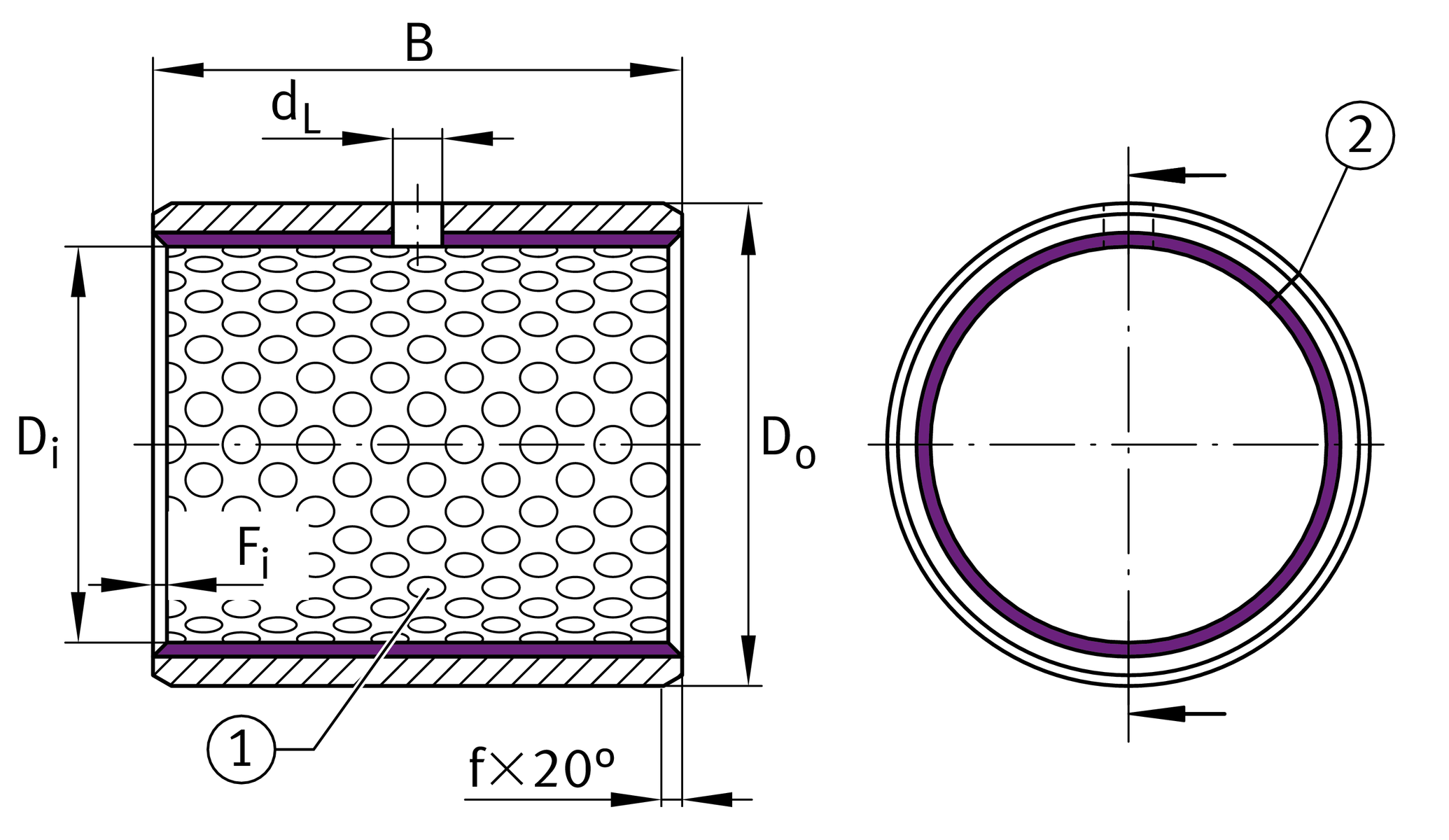

Dimensions
| Di | 8 mm | Inner diameter |
| f | 0.6 mm | Outer chamfer |
| Fi min | 0.1 mm | Inner edge break, min. |
| Fi max | 0.6 mm | Inner edge break, max. |
| BUT | -0.25 mm | Width, lower tolerance |
| BOT | 0.25 mm | Width, upper tolerance |
| fOT | 0.4 mm | Outer chamfer, upper tolerance |
| fUT | -0.4 mm | Outer chamfer, lower tolerance |
| Fi | 0.1 mm | Inner edge break |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 110 °C | Operating temperature max. |
Downloads:
Your current product variant
| Sealing | Without | Without |
| Material sliding Layer | E50 | Low-maintenance sliding layer with lubrication pockets E50 |
| Material back | Steel |
Characteristics
