DRS1560
Seal carrier Assy
Seal carrier assemblies DRS, for ZARF, ZARF..-L, with integral rotary shaft seal
Replaces
DRS 1560
Description
Metric
Imperial
Main Dimensions & Performance Data
| d1 | 35 mm | Inner diameter centering |
| D | 60 mm | Outside diameter |
| C | 14 mm | Width wave carrier |
| ≈m | 0.14 kg | Weight |

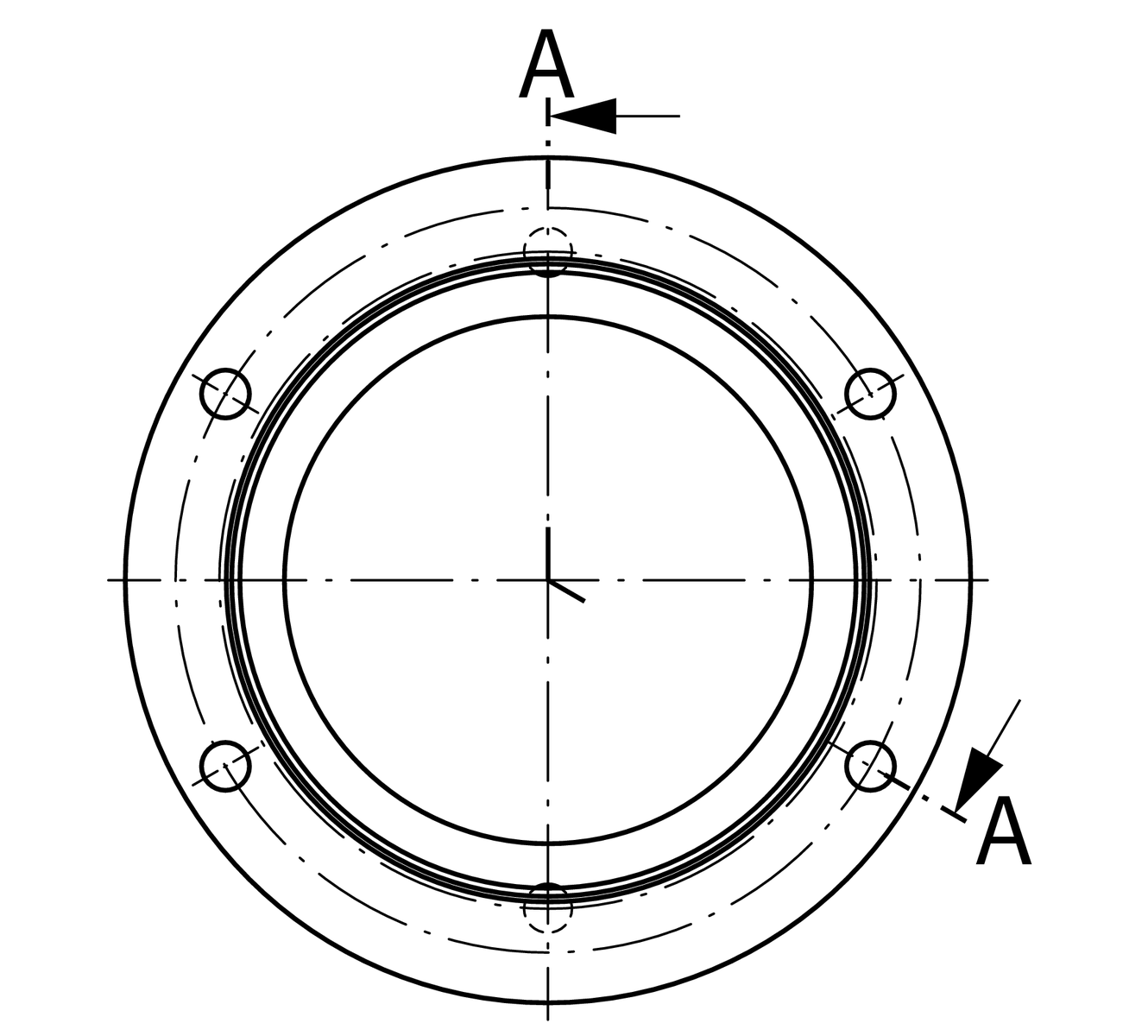

Dimensions
| Z | 52.4 mm | Pitch circle diameter (holes) |
| d | 35 mm | Inner diameter centering seal lip |
| D1 | 45 mm | Outside diameter seal |
| b | 7 mm | Width seal |
| M3X20 | Screw size | |
| 1) | 4 | Number of screws |
Additional information
| ZARF1560(-L)-TV | Bearing designation |
