CSCA042

Deep groove ball bearing

Deep groove ball bearing, Thin section bearing CSCA, brass sheet metal cage

Description

CSCA042

Metric

Imperial

Main Dimensions & Performance Data
d107.95 mmBore diameter
d107.95 mmBore diameter (Inch)
D120.65 mmOutside diameter
B6.35 mmWidth
Cr4,300 NBasic dynamic load rating, radial
C0r5,500 NBasic static load rating, radial
nG5,100 1/minLimiting speed
≈m90 gWeight

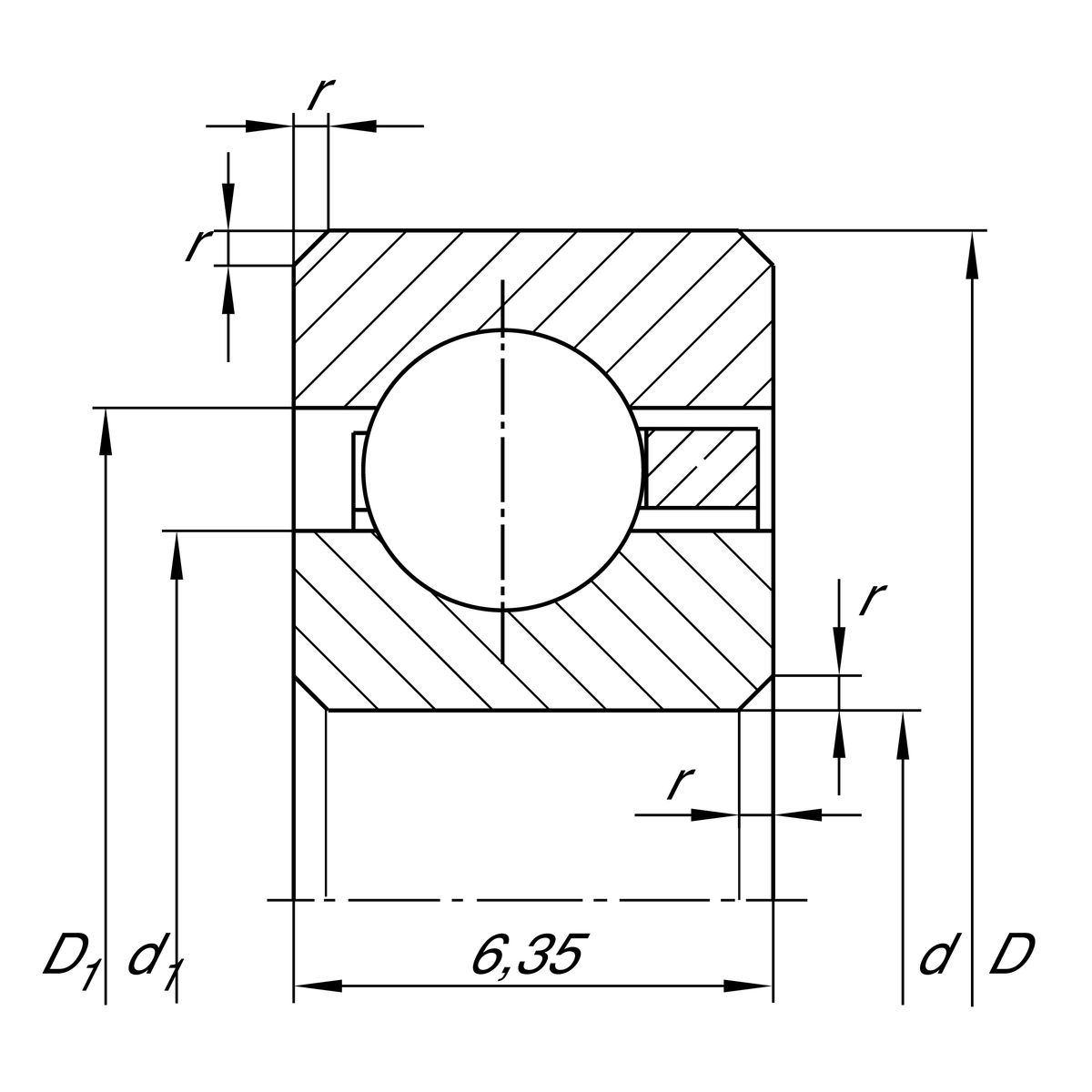

Dimensions
rmin0.6 mmMinimum chamfer dimension
d1112.6 mmShoulder diameter inner ring
D1115.9 mmShoulder diameter outer ring
Temperature range
Tmin-30 °COperating temperature min.
Tmax120 °COperating temperature max.
The technical dimensions for this product are taken from different dimensional systems, the conversion to the other dimensional system [blue color] is without guarantee.
Your current product variant
Logistical codeHLE
SealingWithoutnot sealed
CageYHbrass sheet metal
Tolerance classPL1Class PL1, Normal
LubricantWithoutBearing not greased

Characteristics

clusteriteminfo.radialloadtranslation
clusteriteminfo.axialloadinonedirectiontranslation
clusteriteminfo.axialloadintwodirectionstranslation
clusteriteminfo.greaselubricationtranslation
clusteriteminfo.oillubricationtranslation
clusteriteminfo.notsealedtranslation
