CRB25/72-XL
Radial insert ball bearing
Radial insert ball bearings CRB, with rubber interliner, location by eccentric locking collar, P seals on both sides
Replaces
CRB25/72
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| D | 73 mm | Outside diameter |
| C | 25 mm | Width, outer ring |
| B2 | 36 mm | Width total |
| B1 | 31 mm | Locking collar total width |
| Cr | 14,000 N | Basic dynamic load rating, radial |
| C0r | 7,800 N | Basic static load rating, radial |
| Cur | 370 N | Fatigue load limit, radial |
| 1,000 | Load carrying capacity (rubber interliner) | |
| ≈m | 0.27 kg | Weight |

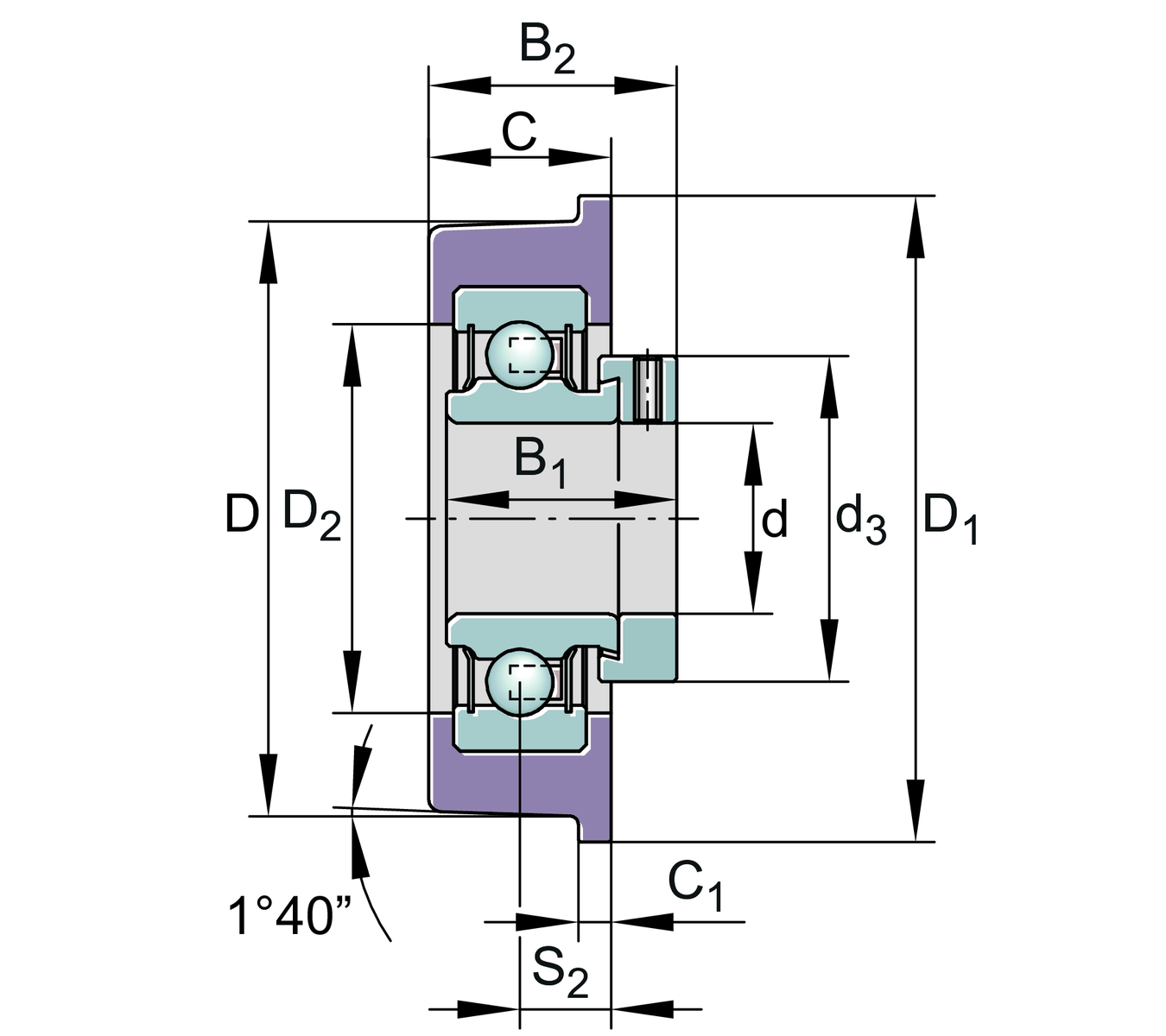

Dimensions
| D1 | 80 mm | Flange diameter |
| Shore A | 80 ° | Hardness rubber interliner |
| C1 | 5 mm | Thickness of flange |
| D2 | 46 mm | Flange diameter rubber interliner |
| d3 | 37.5 mm | Outside diameter locking collar/locknut |
| S2 | 12.5 mm | Distance raceway to rubber interliner flange side |
Calculation factors
| f0 | 13.8 | Calculation factor |
Additional information
| RAE25-XL-NPP | Bearing designation |
