BE20-XL-SML
Radial insert ball bearing
Radial insert ball bearings BE, cylindrical outer ring, with steel aligning ring, P seals on both sides
Replaces
BE20-SML
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 20 mm | Bore diameter |
| D | 55 mm | Outside diameter |
| Cr | 12,800 N | Basic dynamic load rating, radial |
| C0r | 6,600 N | Basic static load rating, radial |
| Cur | 345 N | Fatigue load limit, radial |
| ≈m | 0.188 kg | Weight |

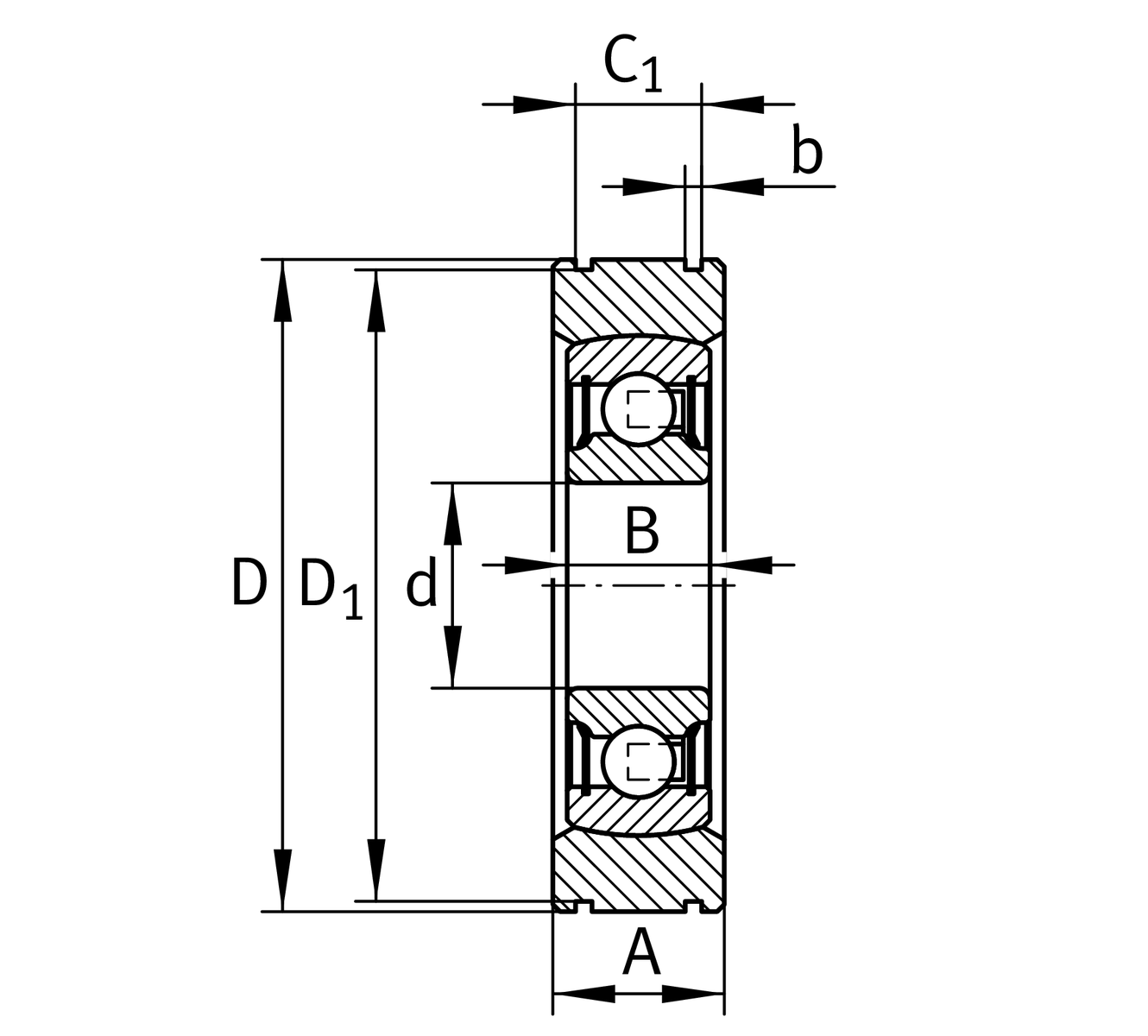

Dimensions
| A | 16 mm | Width, outer ring |
| C1 | 11.2 mm | Distance ring grooves |
| 0.2 mm | Upper distance ring groove tolerance | |
| b | 1.35 mm | Width retaining slot |
| 0.3 mm | Nut width upper tolerance | |
| D1 | 52.6 mm | Diameter of groove |
| -0.5 mm | Nut diameter lower tolerance |
Calculation factors
| f0 | 13.1 | Calculation factor |
Additional information
| 204-XL-NPP-B | Bearing designation |
Characteristics
