AY20-XL-NPP-B
Radial insert ball bearing
Radial insert ball bearings AY..-NPP-B, spherical outer ring, location by grub screws, P seals on both sides
Replaces
AY20-NPP-B
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 20 mm | Bore diameter |
| DSP | 47 mm | Outside diameter |
| B | 25 mm | Width |
| Cr | 13,600 N | Basic dynamic load rating, radial |
| C0r | 6,600 N | Basic static load rating, radial |
| Cur | 345 N | Fatigue load limit, radial |
| ≈m | 0.13 kg | Weight |

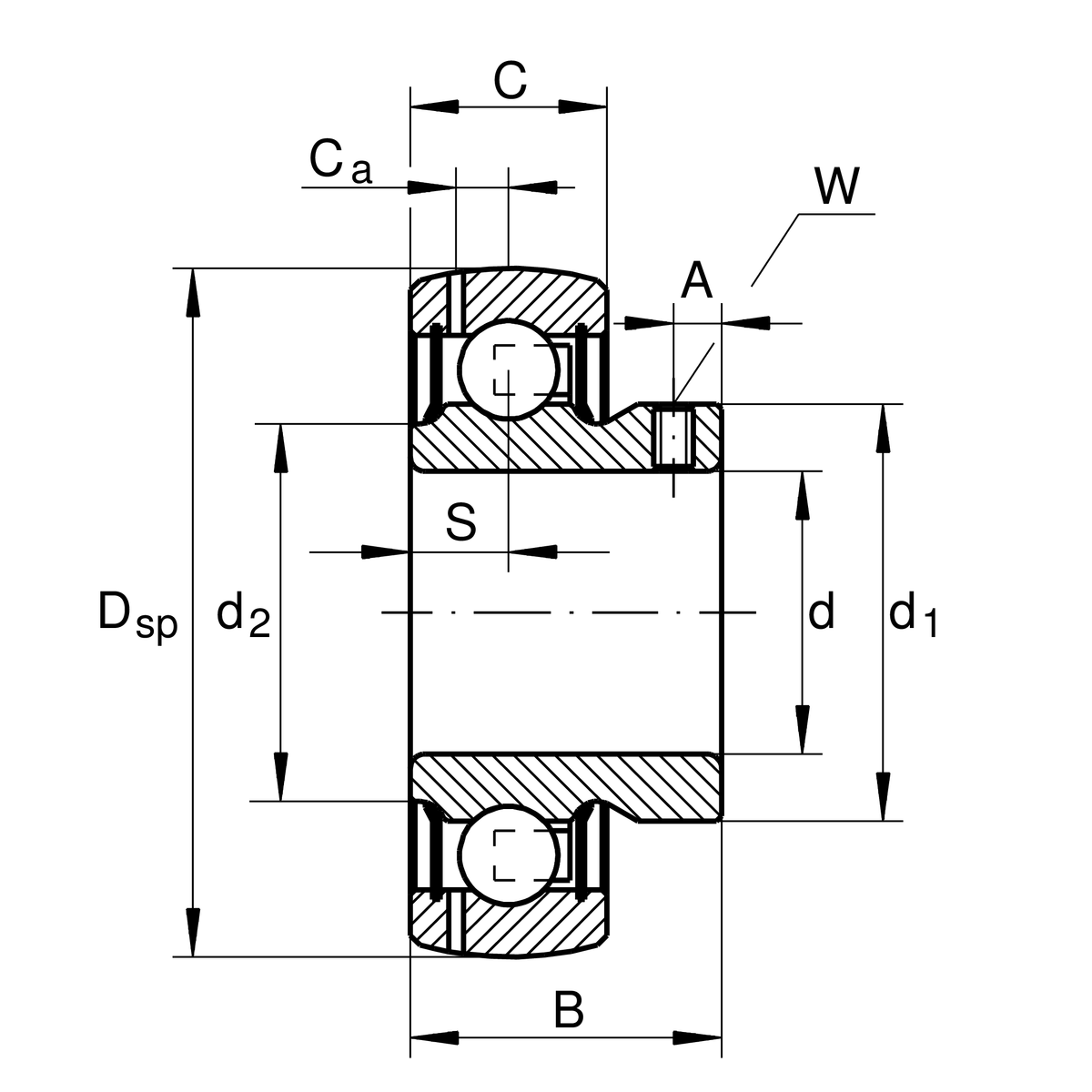

Dimensions
| C | 14 mm | Width, outer ring |
| S | 7 mm | Distance raceway |
| d1 | 28.3 mm | Rib diameter inner ring |
| d2 | 26.7 mm | Rib diameter sealing inner ring |
| A | 4.5 mm | Distance thread |
| W | 2.5 mm | Width of flats |
Calculation factors
| f0 | 13.1 | Calculation factor |
Downloads:
Your current product variant
| Sealing | NPP | Lip seal on both sides |
| Shape of outer surface | B | B |
