Main Dimensions & Performance Data
| d | M120X2 | Thread |
| D | 155 mm | Outside diameter |
| h | 30 mm | Height |
| FaB | 880,000 N | Breaking load, axial |
| ML | 1,450 Nm | Breakawag |
| MAL | 250 Nm | Mounting torque reference |
| Mm | 75 kg*cm2 | Mass moment of inertia |
| ≈m | 1.54 kg | Weight |
Mounting dimensions
| Mm | 20 Nm | Mounting torque set screw |
Dimensions

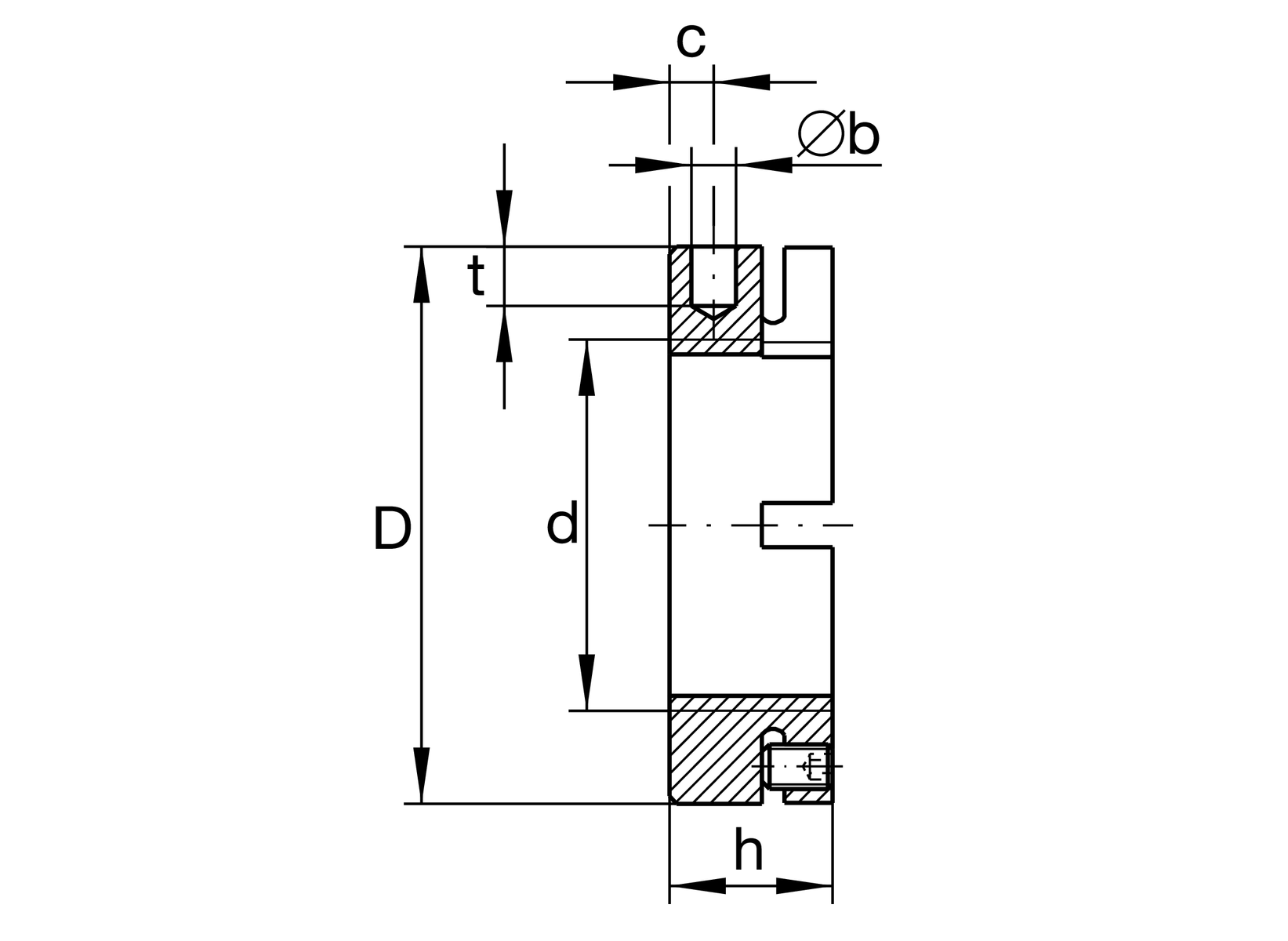

| b | 8 mm | Bore diameter blind hole |
| t | 10 mm | Depth blind hole |

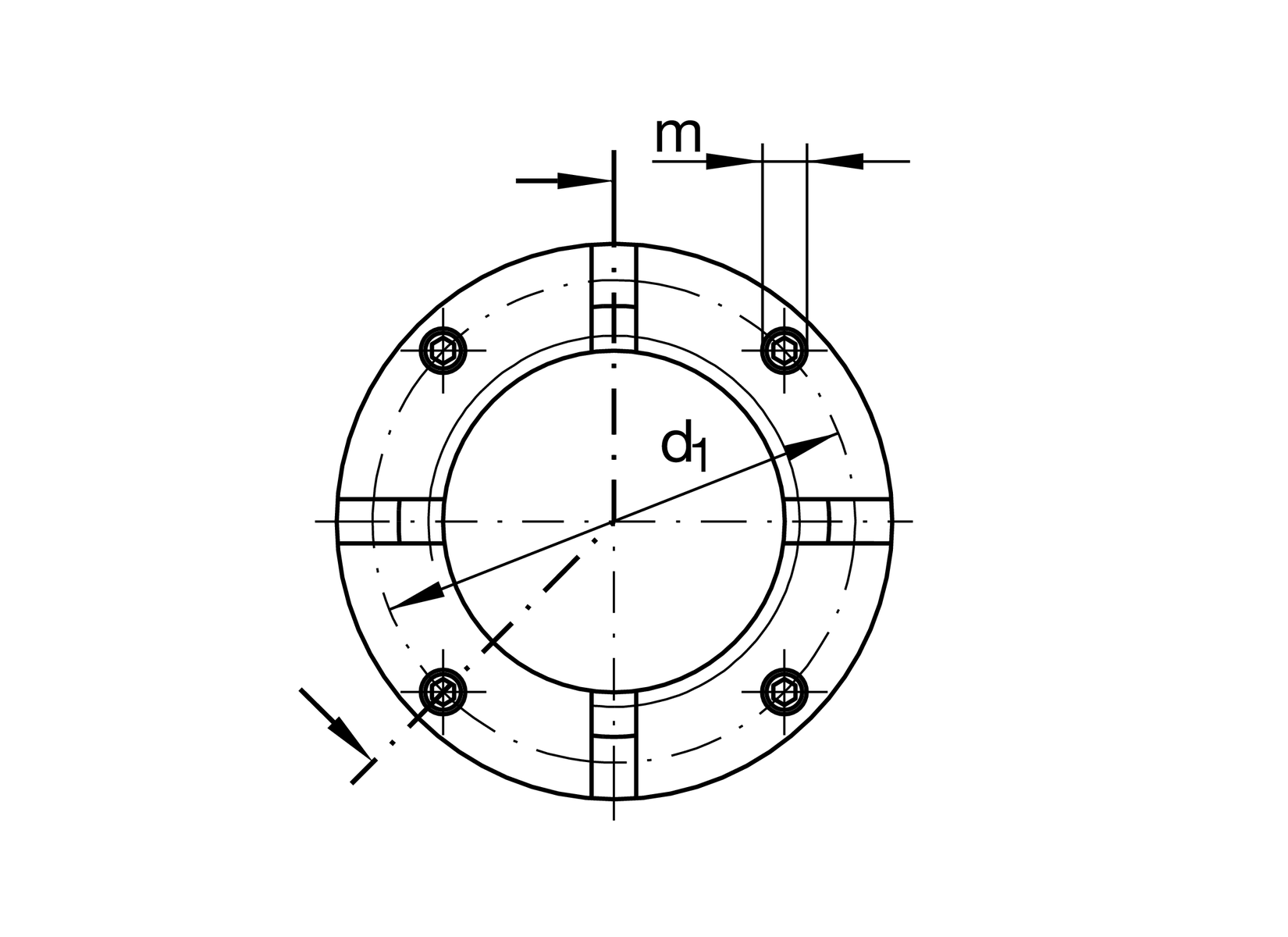

| d1 | 142 mm | Pitch circle diameter 1 (holes) |
| c | 10 mm | Distance bore |
| m | M10 | Threaded – threaded pin |
| H11 mm | Bore diameter blind hole housing fit |
