81105-TV
Axial cylindrical roller bearing
Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
Replaces
811 05 TN, 81105TVPB
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| D | 42 mm | Outside diameter |
| T | 11 mm | Height |
| Ca | 33,000 N | Basic dynamic load rating, axial |
| C0a | 76,000 N | Basic static load rating, axial |
| Cua | 7,200 N | Fatigue load limit, axial |
| nG | 8,600 1/min | Limiting speed |
| nϑr | 3,500 1/min | Reference speed |
| ≈m | 51.6 g | Weight |

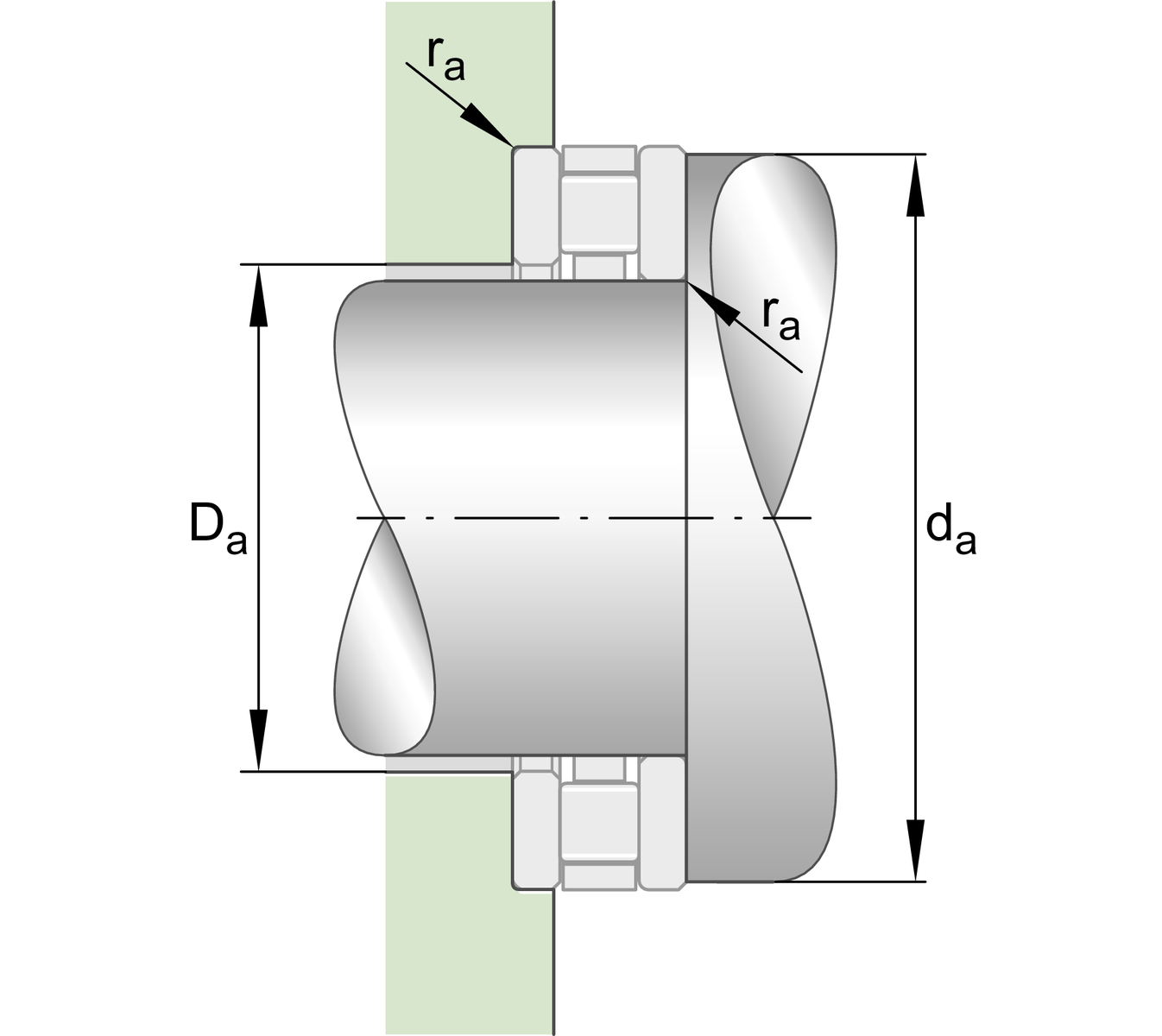

Mounting dimensions
| da min | 41 mm | Minimum diameter shaft shoulder |
| Da max | 26 mm | Maximum diameter of housing shoulder |
| ra max | 0.6 mm | Maximum recess radius |

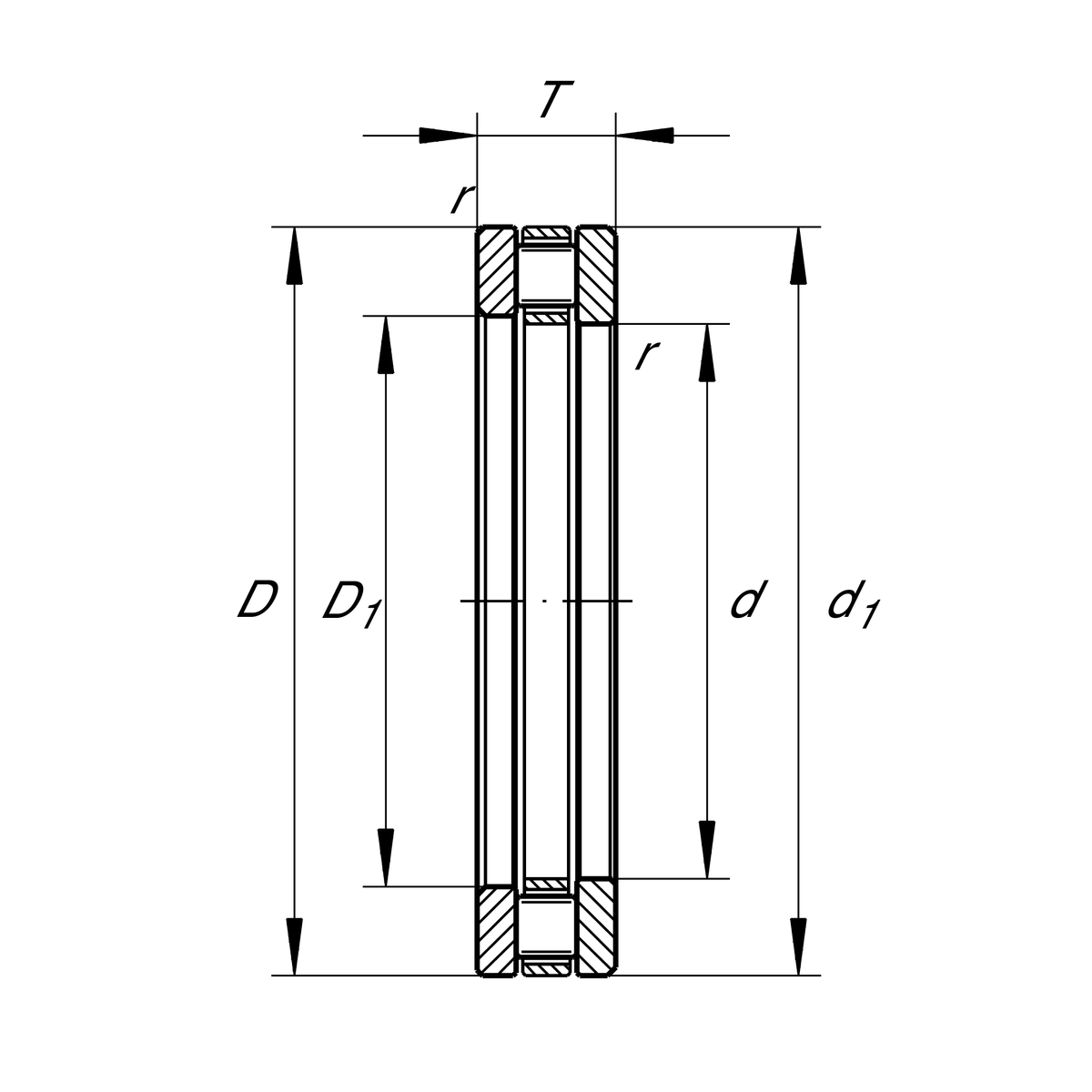

Dimensions
| D1 | 26 mm | Bore diameter housing washer |
| d1 | 42 mm | Rip diameter shaft washer |
| rmin | 0.6 mm | Minimum chamfer dimension |
Temperature range
| Tmin | 120 °C | Operating temperature min. |
| Tmax | -30 °C | Operating temperature max. |
Additional information
| K81105-TV | Axial roller and cage assembly | |
| GS81105 | Housing Washer | |
| WS81105 | Shaft washer | |
| LS2542 | Track Washer |
Downloads:
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
