7014 ACE/HCP4A

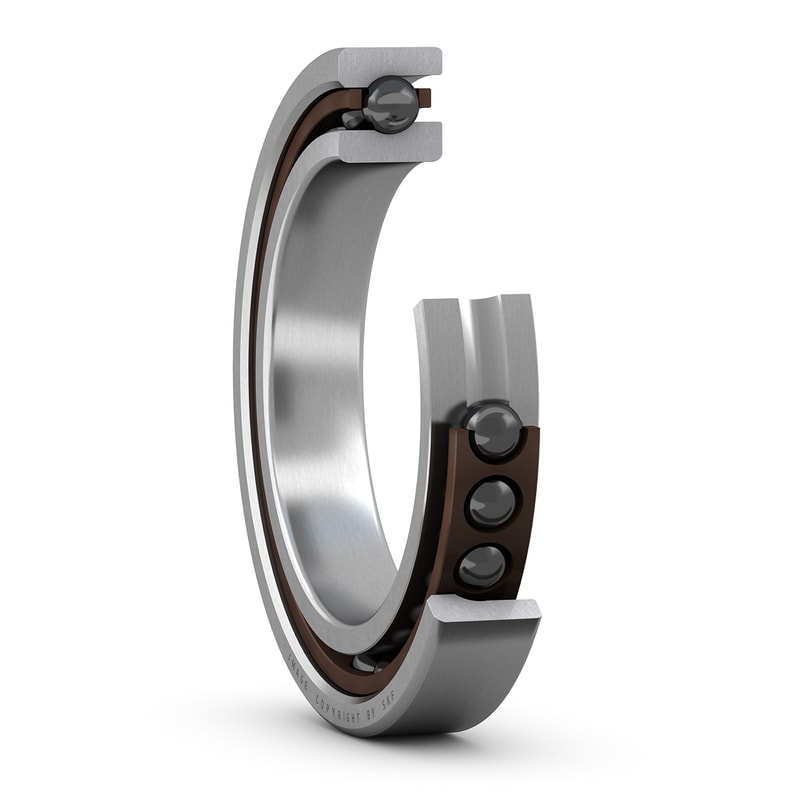

Super-precision, high-speed E design, single row angular contact ball bearing with 25° contact angleThese super-precision, high-speed E design, single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate very high speeds. Compared to the equivalent SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads.
- Very high running accuracy
- Accommodate very high speeds
- Accommodate relatively high radial loads and large unilateral axial loads
Description
| Universal matching bearing(s) | No |
Dimensions
| d | 70 mm | Bore diameter |
|---|---|---|
| D | 110 mm | Outside diameter |
| B | 20 mm | Width |
| d1 | 84.3 mm | Shoulder diameter of inner ring (large side face) |
| d2 | 81.6 mm | Shoulder diameter of inner ring (small side face) |
| D1 | 95.32 mm | Shoulder diameter of outer ring (large side face) |
| r1,2 | min. 1.1 mm | Chamfer dimension |
| r3,4 | min. 0.6 mm | Chamfer dimension |
| a | 31.2 mm | Distance from side face to pressure point |
Abutment dimensions
| da | min. 76 mm | Diameter of shaft abutment |
|---|---|---|
| db | min. 76 mm | Diameter of shaft abutment |
| Da | max. 104 mm | Diameter of housing abutment |
| Db | max. 105.8 mm | Diameter of housing abutment |
| ra | max. 1 mm | Radius of fillet |
| rb | max. 0.6 mm | Radius of fillet |
| dn | 86.5 mm | Position of oil nozzle |
Calculation data
| Basic dynamic load rating | C | 22.5 kN |
|---|---|---|
| Basic static load rating | C0 | 17.3 kN |
| Fatigue load limit | Pu | 0.54 kN |
| Attainable speed for grease lubrication | 18 500 r/min | |
| Attainable speed for oil-air lubrication | 29 000 r/min | |
| Contact angle | α | 25 ° |
| Ball diameter | Dw | 9.525 mm |
| Number of balls (per bearing) | z | 25 |
| Reference grease quantity (per bearing) | Gref | 8.2 cm³ |
| Preload class A | GA | 200 N |
|---|---|---|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) | 159 N/µm | |
| Preload class B | GB | 610 N |
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) | 238 N/µm | |
| Preload class C | GC | 1 220 N |
| Axial stiffness for preload C (sets of two brgs back-to-back or face-to-face) | 311 N/µm |
| Correction factor dependent on bearing series and size | f | 1.09 |
|---|---|---|
| Correction factor dependent on contact angle | f1 | 0.99 |
| Correction factor, preload class A | f2A | 1 |
| Correction factor, preload class B | f2B | 1.03 |
| Correction factor, preload class C | f2C | 1.06 |
| Correction factor for hybrid bearings | fHC | 1.01 |
| Limiting value | e | 0.68 |
| Axial load factor (single, tandem) | Y2 | 0.87 |
| Axial load factor (single, tandem) | Y0 | 0.38 |
| Radial load factor (single, tandem) | X2 | 0.41 |
| Axial load factor (back-to-back, face-to-face) | Y1 | 0.92 |
| Axial load factor (back-to-back, face-to-face) | Y2 | 1.41 |
| Axial load factor (back-to-back, face-to-face) | Y0 | 0.76 |
| Radial load factor (back-to-back, face-to-face) | X2 | 0.67 |
Mass
| Mass | 0.56 kg |
Tolerances and clearances
Product details
- Tolerances: P4A, P4B, P4, PA9A, P2
- Clamping and fitting forces: D design, E design, B design
- Designation suffixes H, H1, L and L1 identify variants for direct oil-air lubrication.
Principles of bearing selection and application
- Chamfer dimensions
- Seat tolerances for standard conditions: shafts, housings
- Values for ISO tolerance classes: shafts, housings
- Speed dependent initial grease fill → Initial grease fill
