6000

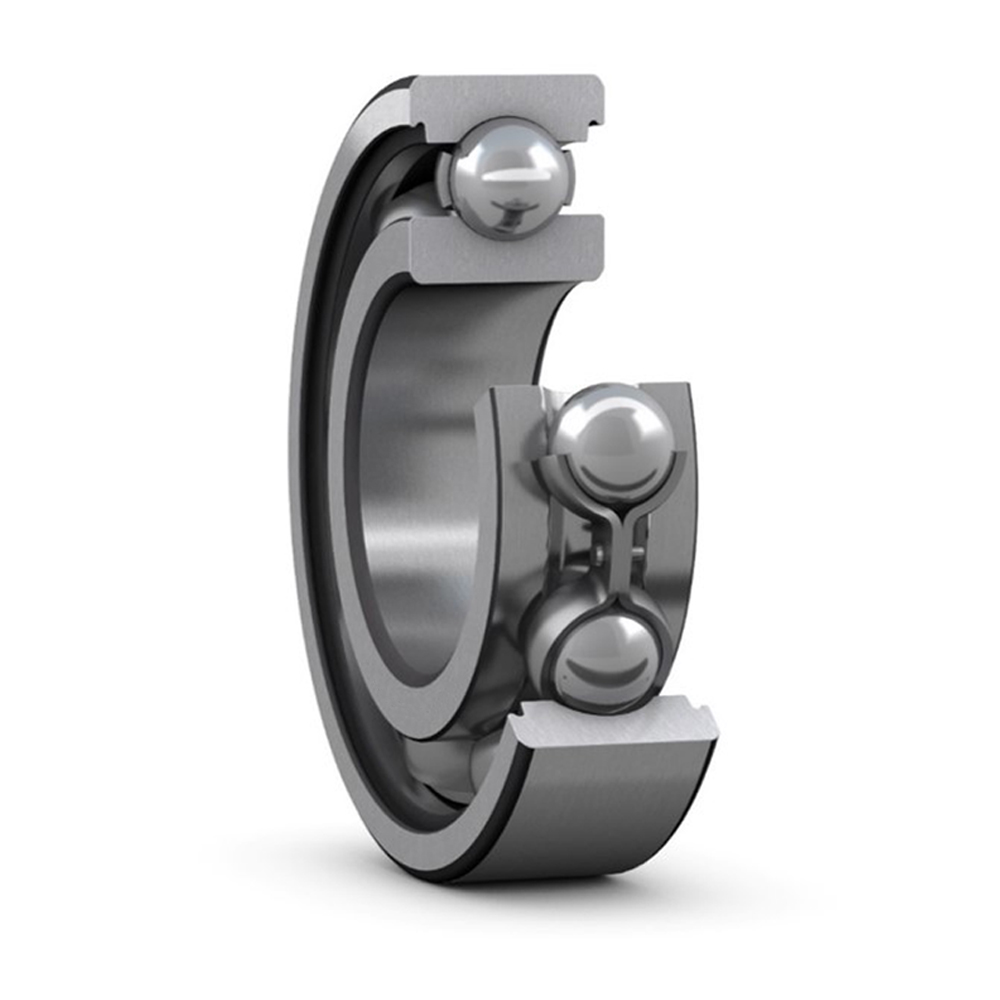

Deep groove ball bearingSingle row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

    • Simple, versatile and robust design
    • Low friction
    • High-speed capability
    • Accommodate radial and axial loads in both directions
    • Require little maintenance



Description





Display in:











Dimensions - 6000



Dimensions

d
10 mm
Bore diameter
D
26 mm
Outside diameter
B
8 mm
Width
d1
14.8 mm
Shoulder diameter
D2
22.6 mm
Recess diameter
r1,2
min.0.3 mm
Chamfer dimension







Abutment dimensions - 6000



Abutment dimensions

da
min.12 mm
Diameter of shaft abutment
Da
max.24 mm
Diameter of housing abutment
ra
max.0.3 mm
Radius of shaft or housing fillet





Mass

Mass bearing
0.019 kg





Tolerance class

Dimensional tolerances
P6
Radial run-out
P5
