Main Dimensions & Performance Data
| d | 10 mm | Bore diameter |
| D | 26 mm | Outside diameter |
| B | 12 mm | Width |
| Cr | 5,700 N | Basic dynamic load rating, radial |
| C0r | 3,200 N | Basic static load rating, radial |
| Cur | 166 N | Fatigue load limit, radial |
| nG | 31,000 1/min | Limiting speed |
| nϑr | 21,900 1/min | Reference speed |
| ≈m | 22 g | Weight |

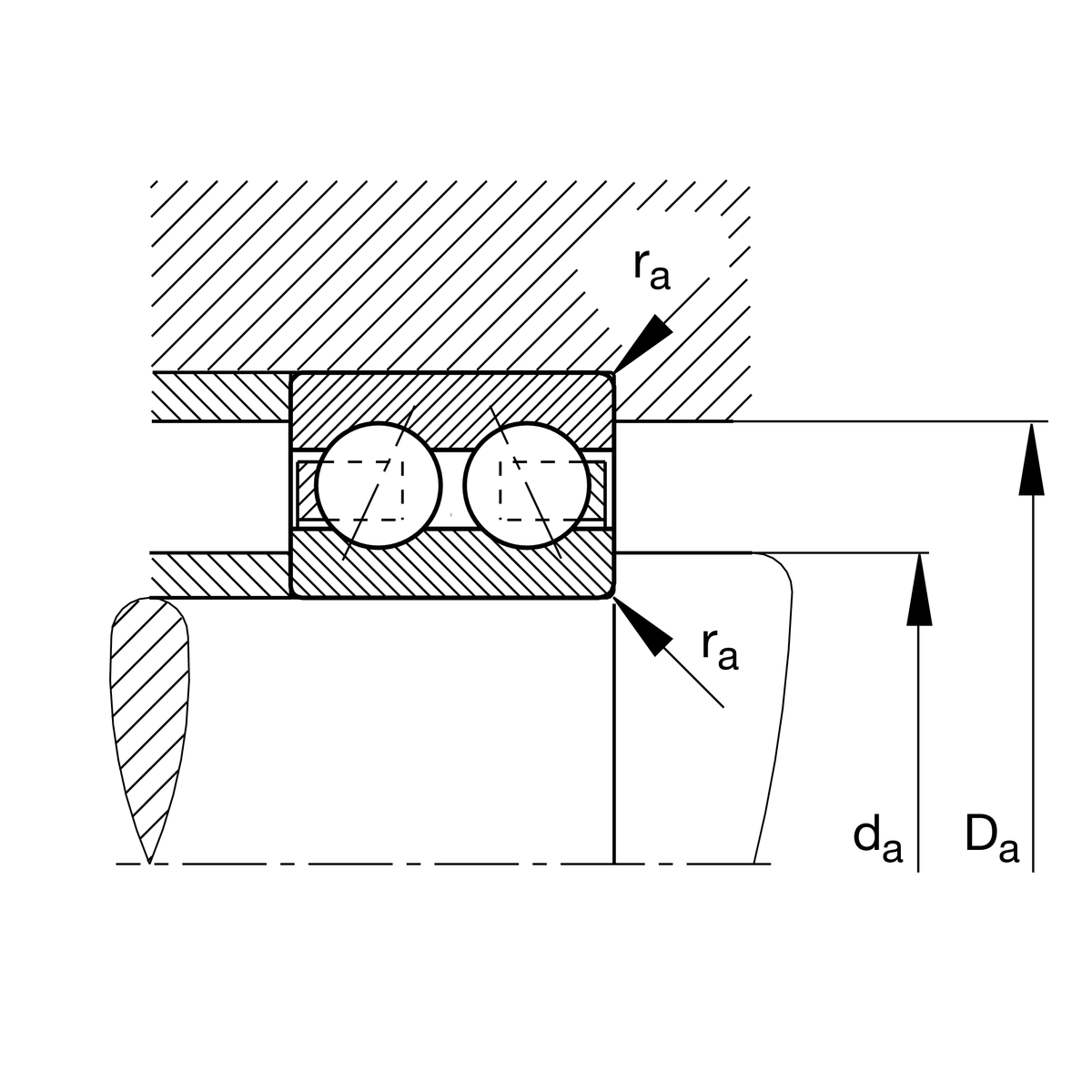

Mounting dimensions
| da min | 12 mm | Minimum diameter shaft shoulder |
| Da max | 24 mm | Maximum diameter of housing shoulder |
| ra max | 0.3 mm | Maximum fillet radius |

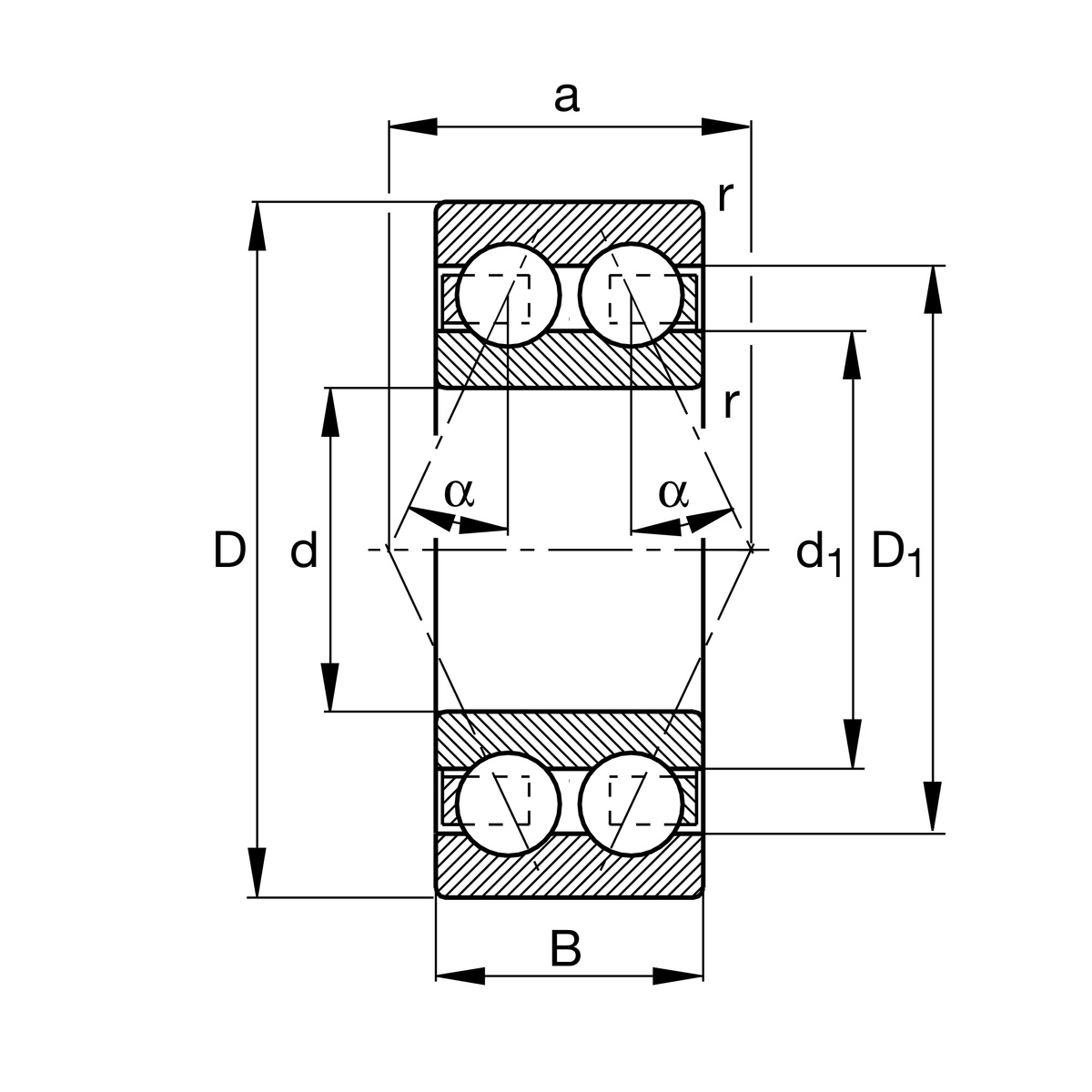

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| D1 | 20.6 mm | Shoulder diameter outer ring |
| d1 | 15.8 mm | Shoulder diameter inner ring |
| a | 12.6 mm | Distance between the apexes of the pressure cones |
| α | 25 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Lubricant | Without | Bearing not greased |
| Sealing | Without | not sealed |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Axial internal clearance | CN | Group N (CN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Design variant | B | Design variant B |
