21305 CC

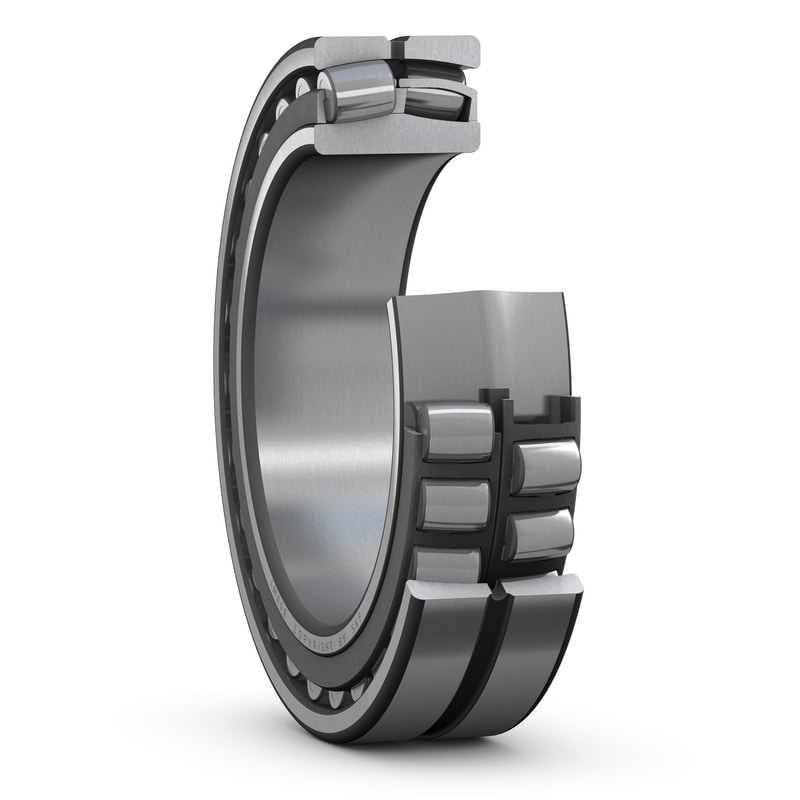

Spherical roller bearingSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.
- Accommodate misalignment
- High load carrying capacity
- Low friction and long service life
- Increased wear resistance
Description
Dimensions
| Bore diameter | 25 mm |
| Outside diameter | 62 mm |
| Width | 17 mm |
Performance
| Basic dynamic load rating | 49.1 kN |
| Basic static load rating | 41.5 kN |
| Reference speed | 11 000 r/min |
| Limiting speed | 15 000 r/min |
| SKF performance class | SKF Explorer |
Properties
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
