208-XL-KRR
Deep groove ball bearing
Radial insert ball bearings 2..-KRR, cylindrical outer ring, inner ring for fit, R seals on both sides
Replaces
208-KRR
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| B | 27 mm | Width |
| Cr | 34,500 N | Basic dynamic load rating, radial |
| C0r | 19,800 N | Basic static load rating, radial |
| ≈m | 0.45 kg | Weight |

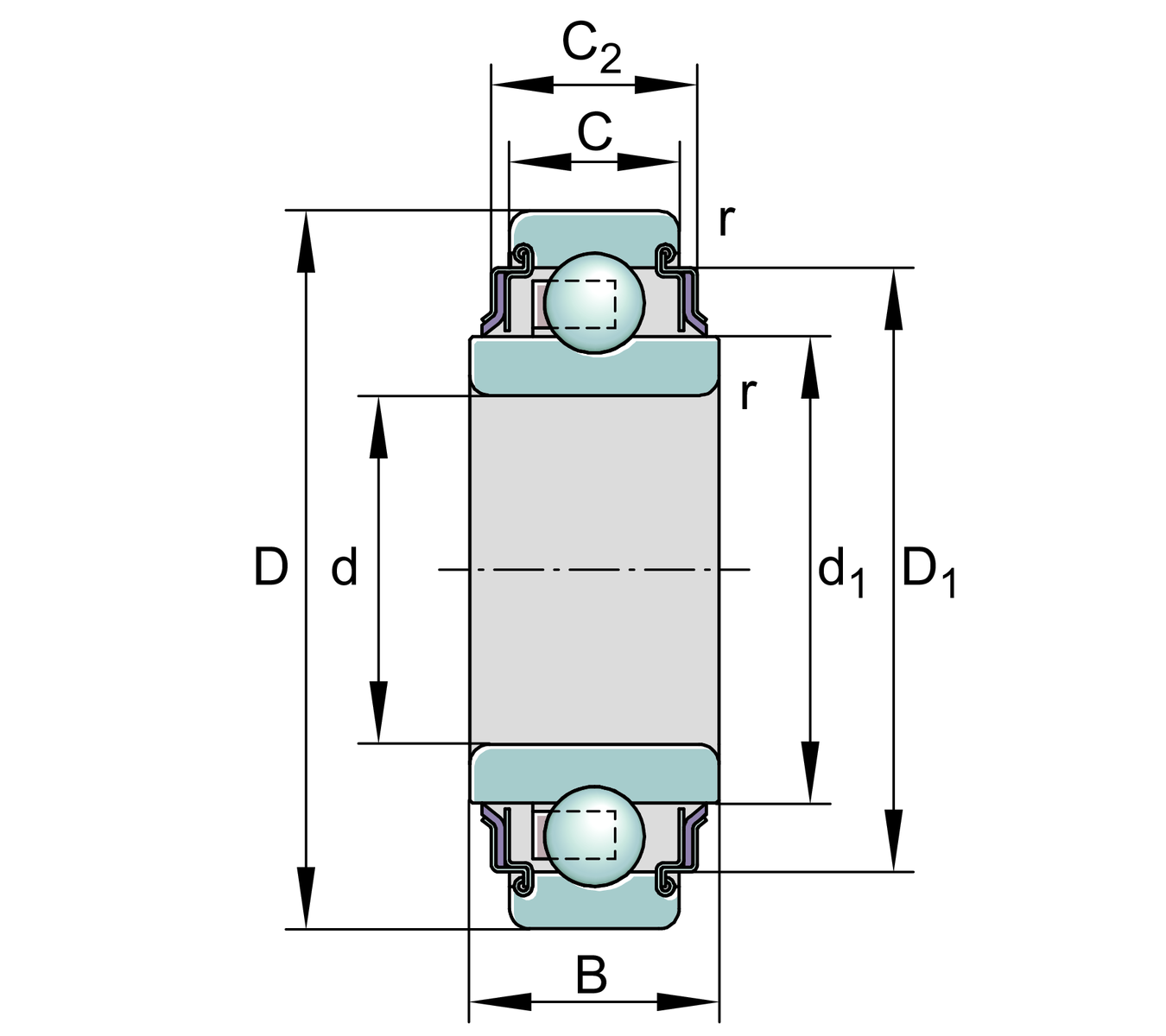

Dimensions
| D1 | 68.2 mm | Outside diameter seal |
| C | 18 mm | Width, outer ring |
| C2 | 20.5 mm | Sealing total width |
| d1 | 52.3 mm | Rib diameter inner ring |
Calculation factors
| f0 | 13.6 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
Characteristics
