13944

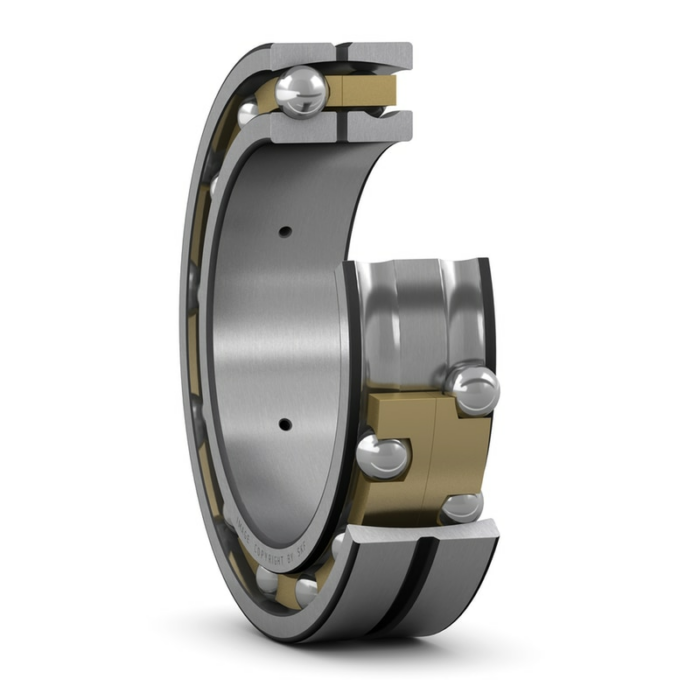

Large-size self-aligning ball bearingLarge-size self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The annular lubrication groove in the outer ring and holes in the inner and outer rings facilitate ease of relubrication.
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
- Relubrication feature
Description
| Bore type | Cylindrical |
Dimensions
| d | 220 mm | Bore diameter |
|---|---|---|
| D | 300 mm | Outside diameter |
| B | 60 mm | Width |
| d1 | ≈ 248.9 mm | Shoulder diameter inner ring |
| D1 | ≈ 277.8 mm | Shoulder diameter outer ring |
| b | 8.3 mm | Width annular lubrication groove at outer ring |
| K | 4.5 mm | Diameter lubrication hole (outer ring) |
| r1,2 | min. 2.1 mm | Chamfer dimension |
Abutment dimensions
| da | min. 231 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 289 mm | Abutment diameter housing |
| ra | max. 2 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 60.5 kN |
|---|---|---|
| Basic static load rating | C0 | 29 kN |
| Fatigue load limit | Pu | 0.965 kN |
| Reference speed | 3 800 r/min | |
| Limiting speed | 2 400 r/min | |
| Permissible angular misalignment | α | 3 ° |
| Calculation factor | kr | 0.015 |
| Limiting value | e | 0.18 |
| Calculation factor | Y0 | 3.6 |
| Calculation factor | Y1 | 3.5 |
| Calculation factor | Y2 | 5.4 |
Mass
| Mass bearing | 11 kg |
