1226 M

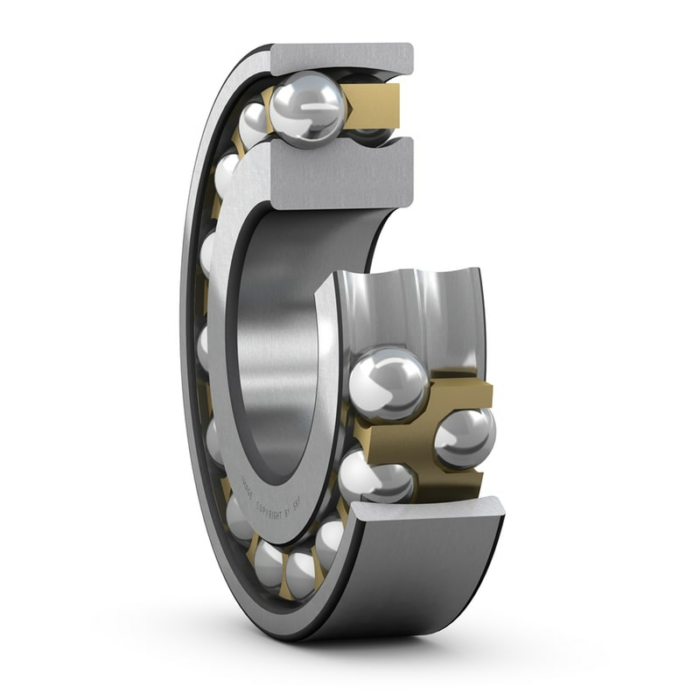

Self-aligning ball bearingSelf-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
Description
| Bore type | Cylindrical |
Dimensions
| d | 130 mm | Bore diameter |
|---|---|---|
| D | 230 mm | Outside diameter |
| B | 46 mm | Width |
| d1 | ≈ 163 mm | Shoulder diameter inner ring |
| D1 | ≈ 201.4 mm | Shoulder diameter outer ring |
| C1 | 1.322 mm | Protrusion of the balls from bearing side faces |
| r1,2 | min. 3 mm | Chamfer dimension |
Abutment dimensions
| da | min. 144 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 216 mm | Abutment diameter housing |
| ra | max. 3 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 127 kN |
|---|---|---|
| Basic static load rating | C0 | 58.5 kN |
| Fatigue load limit | Pu | 2.24 kN |
| Reference speed | 5 600 r/min | |
| Limiting speed | 3 600 r/min | |
| Permissible angular misalignment | α | 2.5 ° |
| Calculation factor | kr | 0.04 |
| Limiting value | e | 0.21 |
| Calculation factor | Y0 | 3.2 |
| Calculation factor | Y1 | 3 |
| Calculation factor | Y2 | 4.6 |
Mass
| Mass bearing | 8.3 kg |
